ASTM D5094 Vacuum Leak Test for Rigid Containers & Closures

Precision vacuum leak testing for rigid containers and closure systems, designed to evaluate gross leakage and package integrity under controlled vacuum conditions.

Request a Quote

ASTM D5094 Vacuum Leak Testing for Rigid Containers & Closures

Burhani Engineering Technology manufactures professional vacuum leak-testing equipment for rigid packaging and closure systems using the vacuum method. The ASTM D5094 method is specifically designed for evaluating leakage in rigid containers and testing the integrity of their closures.

By applying a controlled vacuum to a submerged rigid container, this apparatus enables operators to visually detect leakage paths through bubble emission, verifying the integrity of seals, closures, threaded caps, lug-style closures, and overall container materials.

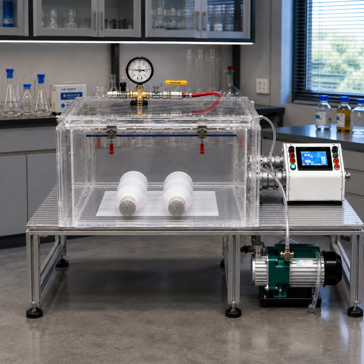

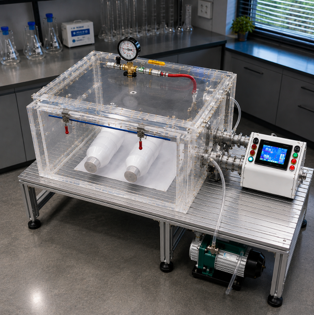

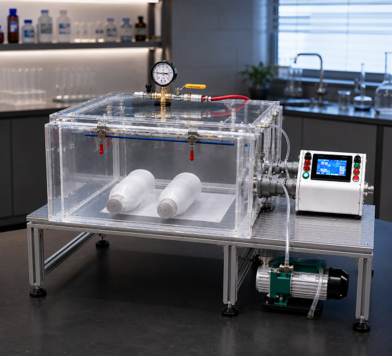

ASTM D5094 Vacuum Leak Tester for Rigid Containers & Closures

ASTM D5094 Package Integrity Testing Equipment

What is ASTM D5094?

ASTM D5094 is a standard test method used for determining gross leaks in rigid containers and closure systems. It relies on bubble emission under controlled vacuum conditions to provide immediate visual confirmation of package and closure integrity. It is particularly intended for rigid packages, often containing liquid, where detecting closure failure (e.g., threaded or lug-style closures) is critical to maintaining quality and preventing contamination.

How ASTM D5094 Vacuum Leak Testing Works

The testing process is straightforward and relies on pressure differentials:

01 — Specimen Preparation

Prepare the rigid container and its closure according to the test procedure.

02 — Specimen Placement

The test specimen is placed in the appropriate testing setup within the vacuum chamber.

03 — Controlled Vacuum Application

Apply the required controlled vacuum condition to the chamber for the specified duration.

04 — Visual Observation

Observe the test response—typically looking for a steady stream of bubbles indicating a leak path.

05 — Leak Identification

Identify evidence of leakage, particularly focusing on the closure or sealed areas.

06 — Record Results

Record the result (Pass/Fail) for quality-control or validation purposes.

Key Features

Controlled Vacuum Testing

Precise vacuum application with a robust control system for repeatable tests.

Closure Integrity Evaluation

Specifically capable of evaluating threaded and lug-style closures for gross leakage.

Rigid Container Compatibility

Designed to accommodate rigid, non-porous containers and bottles effectively.

Transparent Testing Chamber

Provides full visibility to easily spot leakage and bubble emission from any angle.

Benefits

Easily detecting gross leakage in rigid packages.
Improving package integrity verification.
Accurately identifying closure problems before dispatch.
Supporting stringent quality control measures.
Reducing packaging failures in the field.
Improving production consistency and yield.
Supporting package validation and inspection workflows.

Applications

Our ASTM D5094 vacuum leak testing systems are utilized across various industries for:

Rigid packaging
Bottles & Containers
Closure systems
Liquid packaging
Pharmaceutical packaging
Food & Beverage packaging
Chemical / Industrial containers
Quality control & Laboratory testing

Custom Test Chambers

Burhani Engineering Technology can configure custom vacuum chamber setups adapted to your specific container/package geometry and testing requirements. We offer configurable chamber options to ensure your rigid containers and closures fit perfectly and can be reliably evaluated during production inspection or laboratory validation.

ASTM D5094 Vacuum Leak Testing Demonstration

Watch how the ASTM D5094 method is performed to evaluate the integrity of rigid containers and closures.

Frequently Asked Questions

Common questions about the ASTM D5094 method.

ASTM D5094 is a standard test method used to detect gross leaks in rigid containers and closure systems by submerging them in liquid under a controlled vacuum and observing for bubble emission.

It specifically evaluates package integrity, focusing on locating gross leakage paths in the body of the container or compromised seals around closure systems like threaded caps.

The test is designed for rigid, non-porous containers including bottles, jars, liquid packaging, and varying industrial containers with closure systems.

Applying a controlled vacuum creates a pressure differential between the inside and outside of the container. This forces internal gas to escape through any leaks, making it visibly detectable as bubbles.

Ensuring that closures (like caps and lids) seal perfectly prevents contamination, maintains product shelf-life, and avoids leaks during shipping and handling.

While both are vacuum bubble emission tests, ASTM D5094 is tailored for rigid containers and closures, whereas ASTM D3078 is specifically designed for flexible packaging with headspace gas.

ASTM F2096 tests for leaks by internally pressurizing the package (a destructive method), while ASTM D5094 uses an external vacuum to induce a pressure differential across a rigid container.

Yes, Burhani Engineering Technology can supply customizable vacuum chambers tailored to fit your specific rigid container dimensions and packaging geometries.
