Compact University Glove Box Manufacturer

Compact Controlled Atmosphere Glove Boxes for Universities, Research Laboratories and Industrial Applications

Controlled Laboratory Environments for Academic & Industrial Research

In university research and academic laboratories, space efficiency, affordability, and containment performance are critical. The Compact University Glove Box, designed and manufactured by Burhani Engineering Technology, is a versatile containment system that provides a highly stable, controlled draft-free environment for handling moisture-sensitive materials, chemical compounds, and advanced electronics.

Built using optically clear materials, this University Glove Box delivers excellent visibility and ergonomic operator handling. It serves as an indispensable tool for multiple disciplines, including laboratory glove box research in nanotechnology, biotechnology, and material sciences. By using integrated purging valves, oxygen and humidity are easily purged using inert gases like Nitrogen or Argon, ensuring a pristine environment for active metal manipulation and battery research.

As a global laboratory equipment manufacturer, we integrate essential safety and operational utilities into this system. Every unit features a built-in side transfer chamber that allows instruments and materials to be imported without disrupting the internal atmosphere. With models ranging from two-port research configurations to larger four-port options (BET810-SG10, SG20, SG30, and SG40), our systems offer universities and industrial R&D facilities the gold standard of airtight isolation.

PRODUCT GALLERY

Explore High-Resolution Images of our Compact University Glove Box Series

48 High Resolution Images • Click to Enlarge • Auto Scrolling Gallery

Why Choose Our Compact University Glove Box

Premium features tailored for academic budget constraints and high-precision laboratory testing.

Fully Airtight Construction

Completely sealed enclosure design eliminates trace ambient drafts and isolates moisture/oxygen-sensitive samples.

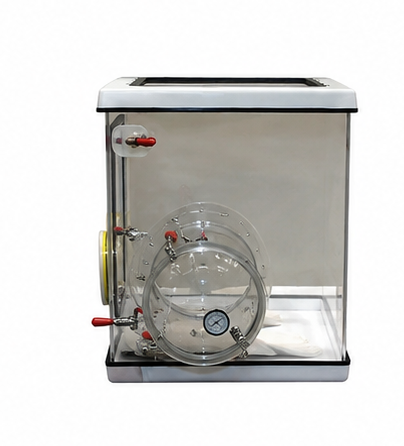

Side Transfer Chamber

Features an integrated 12-inch transfer chamber with independent purging valves for contamination-free sample loading.

HEPA Filtered Pressure Relief

Protects operators and materials during pressure spikes via a compact HEPA-filtered pressure relief valve.

Low Gas Consumption

Optimized internal volume and airtight integrity minimize inert gas consumption, reducing university running costs.

Large Front Access Door

Enables easy loading of larger laboratory instruments, spin coaters, and test equipment before sealing the workspace.

Excellent Optical Visibility

Optically clear acrylic structure provides distortion-free, 360-degree visibility for detailed experimental observations.

Vacuum Monitoring

Equipped with a built-in vacuum gauge on the side transfer chamber for precise atmosphere monitoring during purging.

Hospital Grade Electrical Outlet

Integrated hospital-grade outlet strip inside the chamber allows safe powering of analytical tools and hot plates.

Multiple Standard Sizes

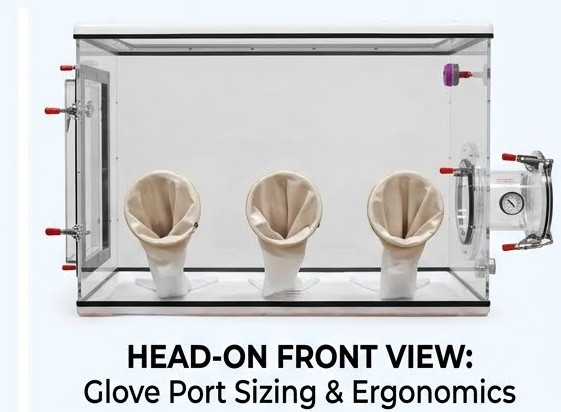

Available in four standard sizes (SG10, SG20, SG30, SG40) accommodating 2, 3, or 4 glove port requirements.

Model Range & Comparison

Explore technical dimensions and application recommendations across the BET810 series.

Model Glove Ports Inside Dimensions Outside Dimensions Access Door Opening Transfer Chamber Working Capacity Recommended Applications

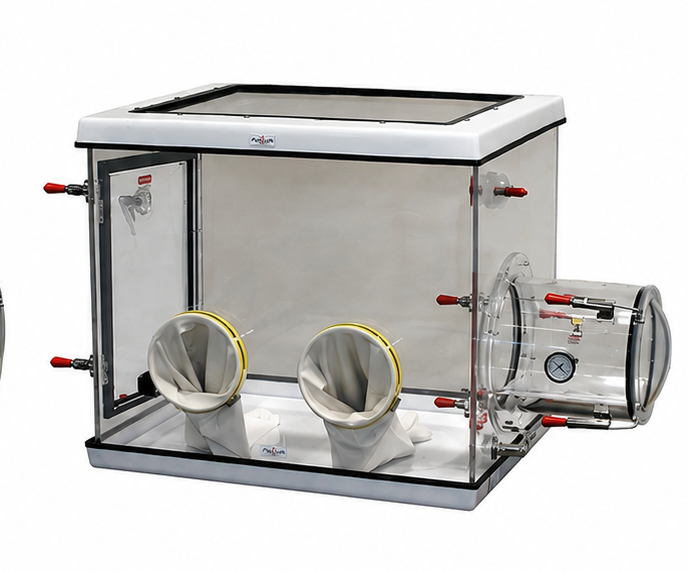

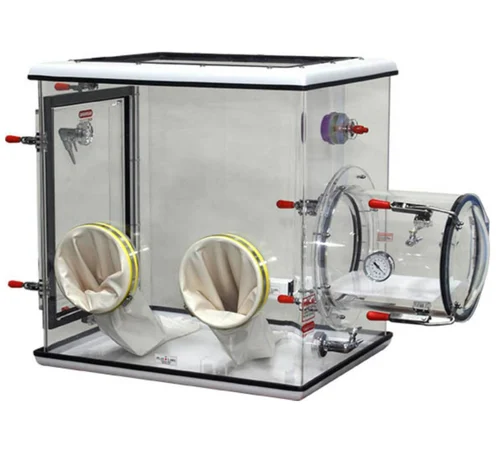

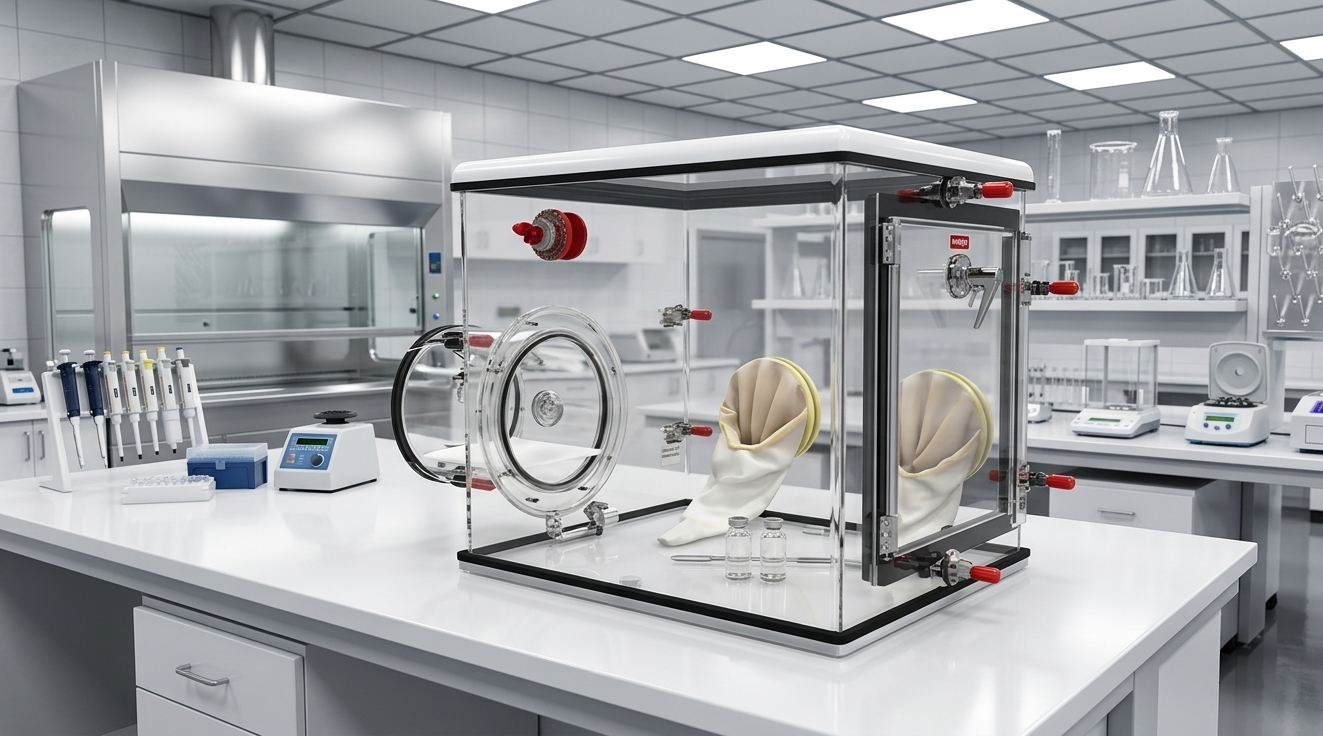

BET810-SG10 Two (2) 28"w x 23"d x 29"h
(710 x 580 x 740mm)
43"w x 24"d x 31"h
(1,100 x 610 x 790mm)
15.5" x 22"h
(400 x 560mm)
12" Length Compact / Space-Efficient Academic R&D, general chemistry, student training

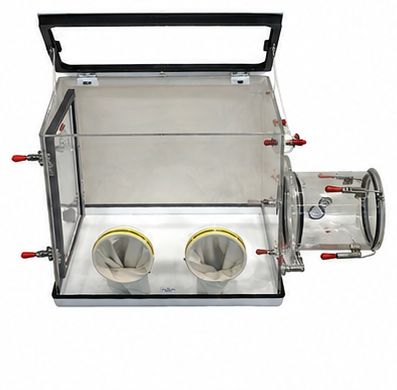

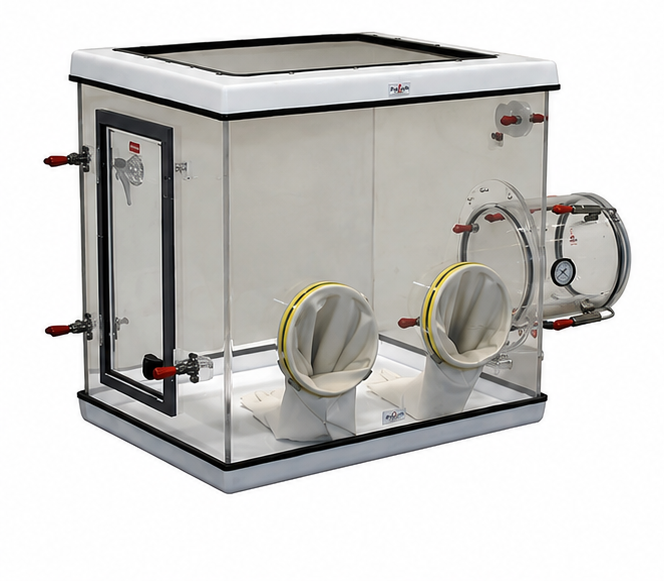

BET810-SG20 Two (2) 35"w x 29"d x 30"h
(890 x 740 x 760mm)
49"w x 30"d x 31"h
(1,250 x 760 x 790mm)
21.5" x 22"h
(546 x 560mm)
12" Length Medium Capacity Pharmaceutical research, biotechnology, electronics manufacturing

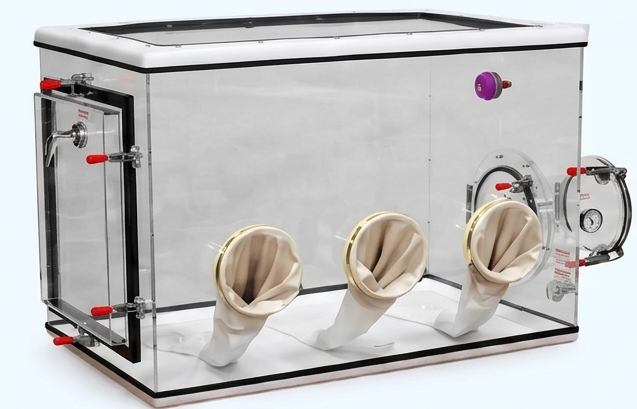

BET810-SG30 Three (3) 48"w x 29"d x 32"h
(1,220 x 740 x 810mm)
63"w x 31"d x 35"h
(1,600 x 790 x 860mm)
21.5" x 24"h
(546 x 610mm)
12" Length High Capacity Lithium battery R&D, semiconductor, catalyst prep

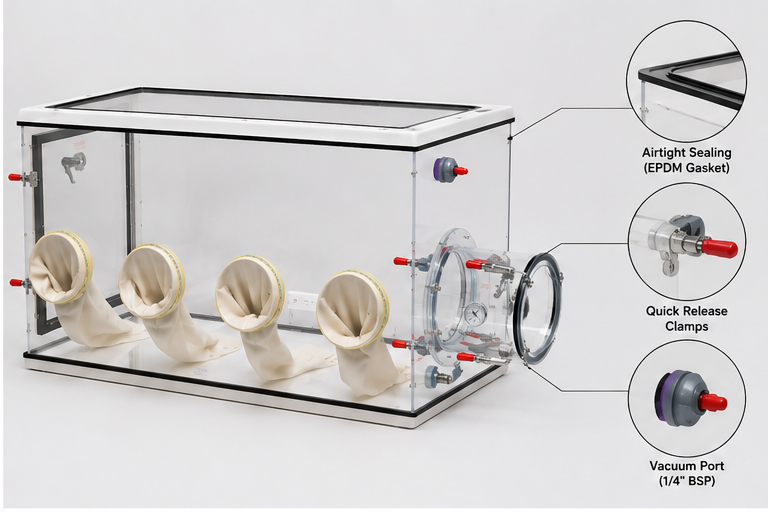

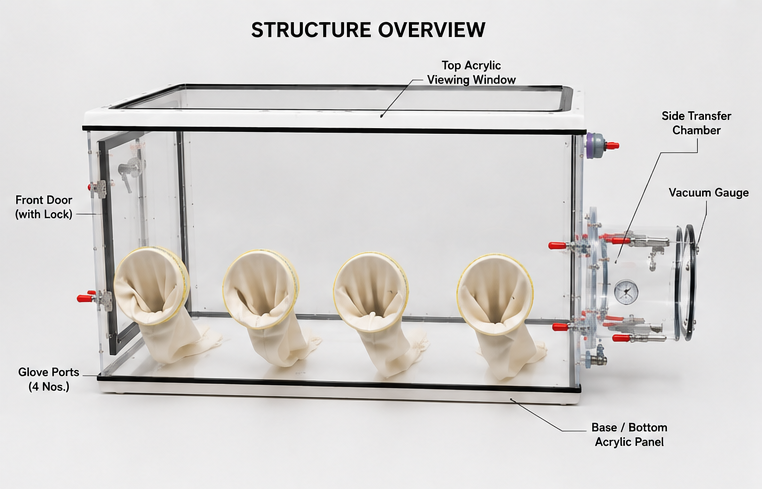

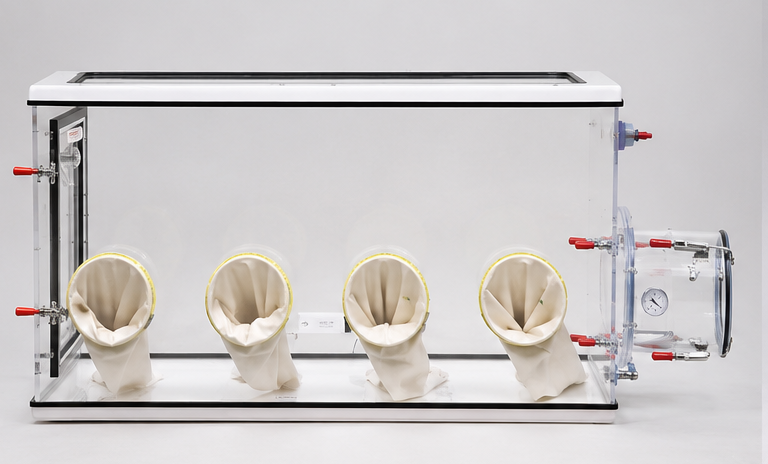

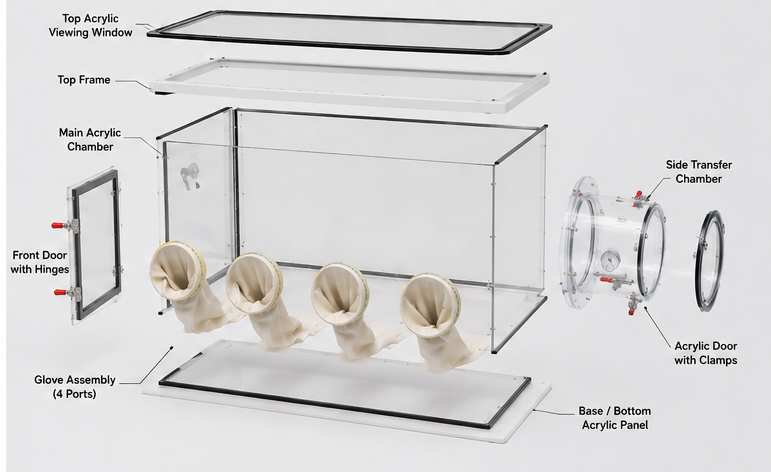

BET810-SG40 Four (4) 60"w x 29"d x 32"h
(1,524 x 740 x 810mm)
76"w x 32"d x 35"h
(1,930 x 812 x 890mm)
21.5" x 24"h
(546 x 610mm)
12" Length Maximum Capacity Multi-operator use, aerospace research, industrial R&D

Laboratory & Industry Applications

Enabling contamination-free scientific discovery and production across specialized sectors.

Universities & Colleges

Cost-effective containment system for physics, chemistry, and engineering education.

Battery Research

Safe handling of reactive lithium metal foils and electrolyte materials.

Semiconductor Labs

Protection of organic substrates, solar cells, and thin-film devices.

Pharmaceutical Industry

Enclosures for weighing toxic powders, compounding, and sterile product handling.

Nanotechnology

Isolation chamber for high-precision nanoparticle manipulation and testing.

Chemical Laboratories

Safe synthesis of oxygen-sensitive organometallics and active catalysts.

Material Science

Supports additive manufacturing, powder processing, and polymer research.

Aerospace Research

Hermetic assembly of micro-sensors, satellites, and precision laser instrumentation.

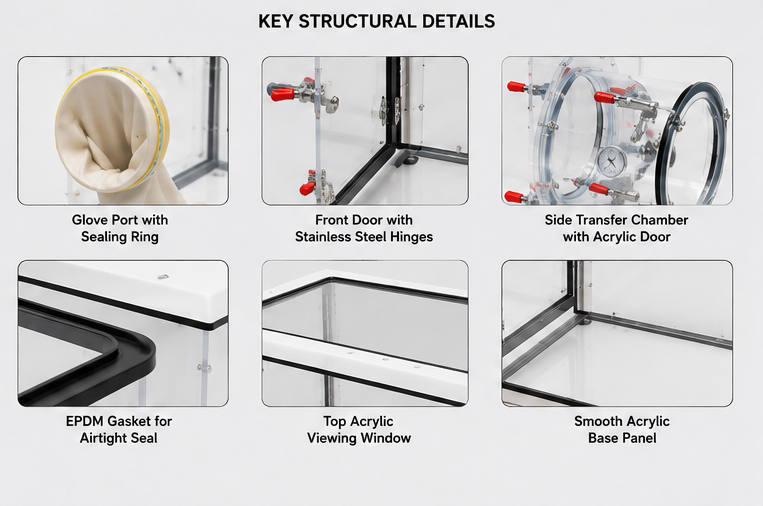

Standard Features

Premium components integrated as standard to guarantee performance and reliability.

Completely Sealed Design

Engineered with leak-tight gaskets to minimize gas consumption and lower operational expenses.

Integrated Transfer Chamber

12-inch side chamber equipped with purging valves and a vacuum gauge for controlled sample entry.

Flat Side Access Door

Large opening allows easy introduction of bulky instruments and experimental equipment.

Four (4) Purging Valves

High-efficiency key cock valves configured for rapid chamber purging and gas replacement.

Hospital-Grade Outlet Strip

Internal electrical outlet strip for clean and safe power connections inside the chamber.

HEPA Pressure Relief Canister

Fitted pressure relief valve integrated with a HEPA filter for optimal contamination control.

24-Month Warranty

Standard 24-month warranty provided on all parts, excluding standard consumables like gloves.

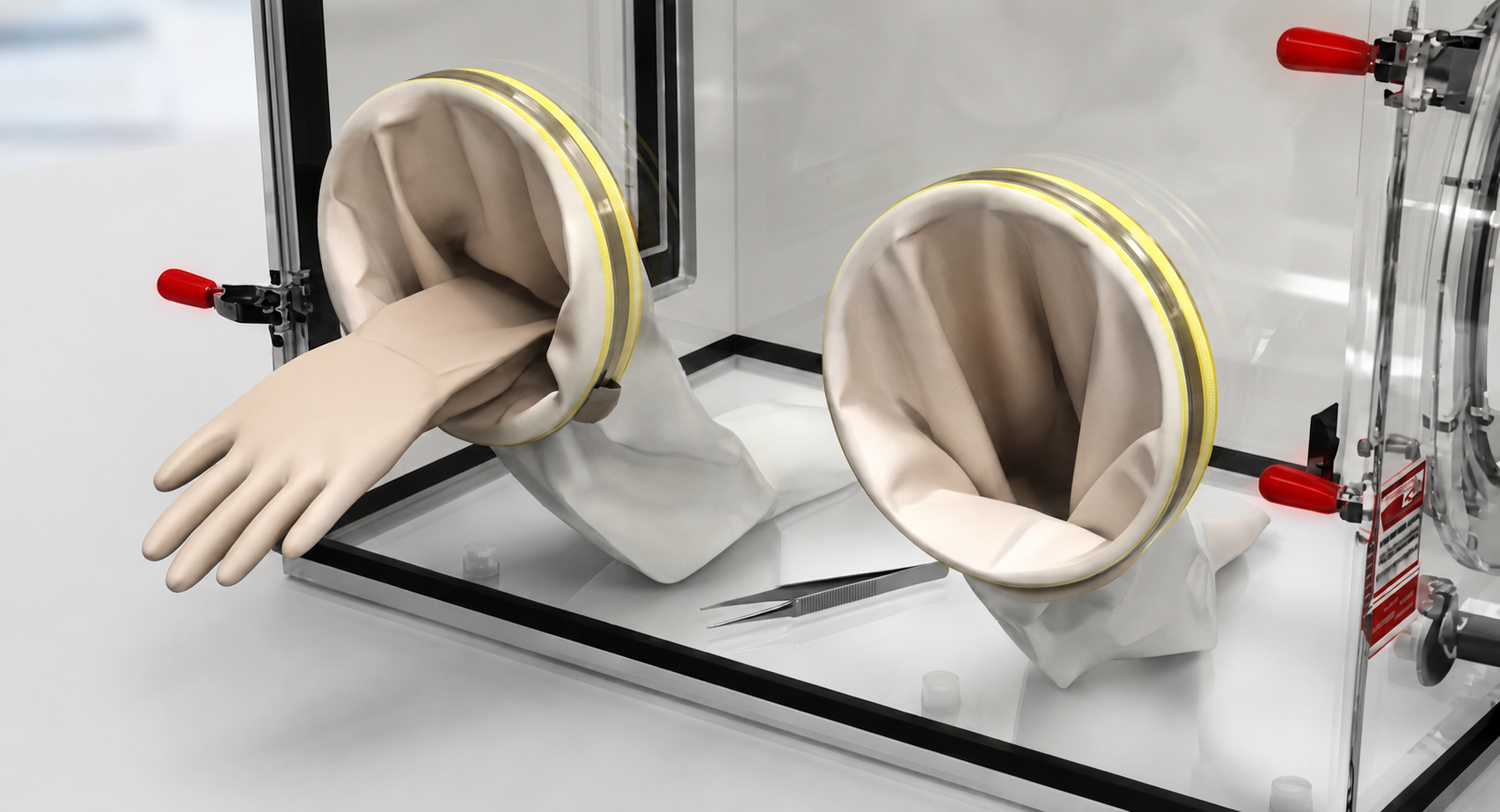

White Ambidextrous Gloves

Supplied with premium quality, chemical-resistant white gloves for operator comfort and safety.

Custom Configurations

Available in custom dimensions, port configurations, and specialty materials upon request.

Technical Construction Parameters

Precision-engineered specifications for academic research isolation workstations.

Atmosphere Purge
  • Purging Valves: Four (4) key cock valves
  • Inert Compatibility: Nitrogen, Argon, Helium
  • Gas Consumption: Low consumption airtight seals
Transfer System
  • Transfer Chamber: 12" cylindrical chamber
  • Valves: Independent purge control
  • Monitoring: Integrated analog vacuum gauge
Chamber & Safety
  • Pressure Relief: Integrated relief valve
  • Filtration: Compact HEPA filter canister
  • Electrical: Hospital-grade internal outlet strip
Ergonomics
  • Glove Ports: 2, 3, or 4 port options
  • Glove Quality: Premium white ambidextrous
  • Viewing Panel: Optically clear transparent body
Mechanical Entry
  • Access Door: Flat side-loading door
  • Door Seal: High-performance compression latch
  • Footprint: Space-saving benchtop setup
Quality & Certifications
  • ISO Standards: ISO 9001, ISO 14001, ISO 13485
  • Safety Compliance: CE and WHO-GMP
  • Warranty: 24-Month structural warranty

Frequently Asked Questions

Get quick answers to common queries regarding academic laboratory containment systems.

A Compact University Glove Box is an airtight containment system designed for academic and laboratory research. Built using optically clear materials, it features integrated purging valves, a side transfer chamber, and safety filtration to provide a controlled draft-free atmosphere for moisture-sensitive and reactive materials.

The primary difference lies in their capacity and dimensions. The BET810-SG10 is space-efficient with internal dimensions of 28"w x 23"d x 29"h, whereas the BET810-SG20 is a medium-capacity system measuring 35"w x 29"d x 30"h, providing a larger workspace.

All models in the SG range are suitable depending on the equipment size. The BET810-SG30 is a popular choice for battery research because it features three glove ports, allowing improved operator accessibility for assembling coin cells, pouch cells, and handling reactive lithium materials.

Yes, the glove box is designed to operate with inert gases including Argon and Nitrogen. It features purging valves that allow the atmosphere to be fully purged and replaced with high-purity Argon gas.

Yes, Nitrogen is commonly used for cost-effective atmosphere control where Argon is not chemically required (e.g., standard moisture control, electronics assembly, and general chemical handling).

It is primarily used in university physics/chemistry labs, pharmaceutical weighing/compounding, electronics assembly, biotechnology research, semiconductor testing, and nanotechnology.

Yes. As a custom laboratory equipment manufacturer, Burhani Engineering Technology can customize the dimensions, glove port numbers, electrical outlet types, and feedthrough ports to meet specific experimental needs.

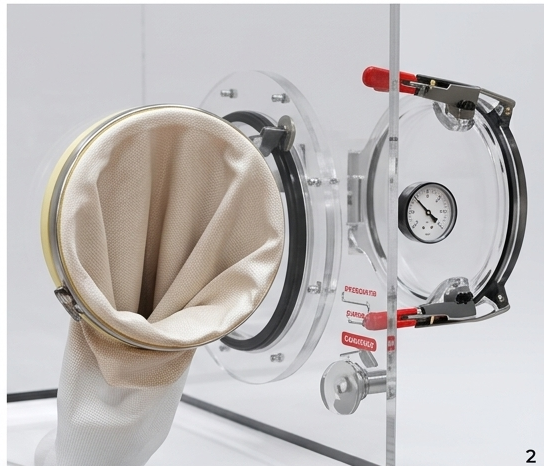

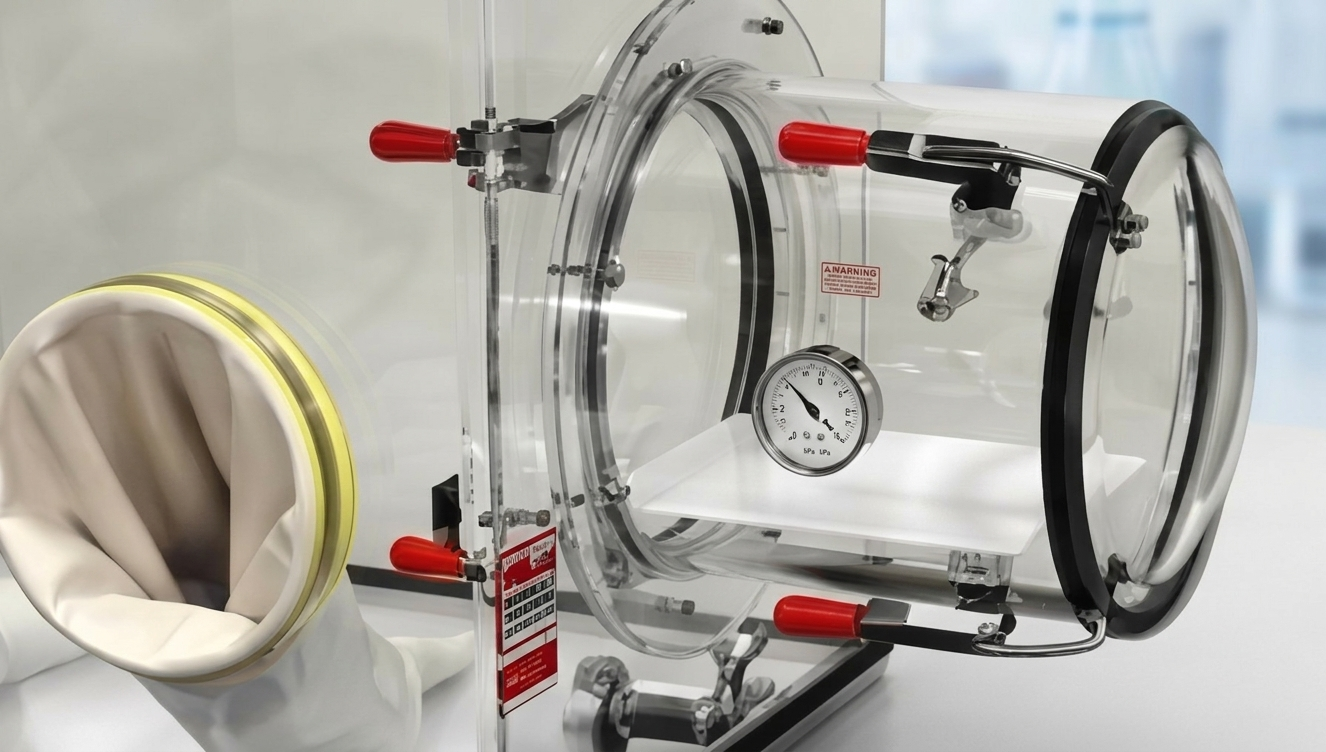

The side transfer chamber (antechamber) is a 12-inch cylindrical chamber equipped with purging valves and a vacuum gauge. It allows the safe transfer of tools, samples, and materials in and out of the main compartment without exposing the internal inert atmosphere to ambient air.

The glove box pressure relief valve is fitted with a compact HEPA filter canister. During pressure adjustments, gas passing through the relief valve is filtered, trapping airborne particulates and preventing contaminants from entering or escaping the enclosure.

Burhani Engineering Technology offers ISO-certified manufacturing quality, a robust 24-month structural warranty, completely sealed gas-saving designs, and customizable setups designed to fit academic budgets without compromising performance.

Related Glove Box Categories

Explore our complete range of specialized atmospheric containment enclosures.

Argon Gas Glove Box

Closed-loop inert gas purification systems maintaining sub-1 ppm environment for active battery R&D.

Acrylic Glove Box

Optically clear acrylic containment enclosures for general vacuum and inert gas applications.

Metal Body Glove Box

Heavy-duty stainless steel bodies designed for structural stability and high-purity isolation.

Negative Pressure

Containment chambers engineered to prevent biohazardous substances from leaking into laboratory spaces.

Need a Compact University Glove Box for Your Laboratory?

Consult our design engineers to select the ideal model or request a custom dimension configuration.
