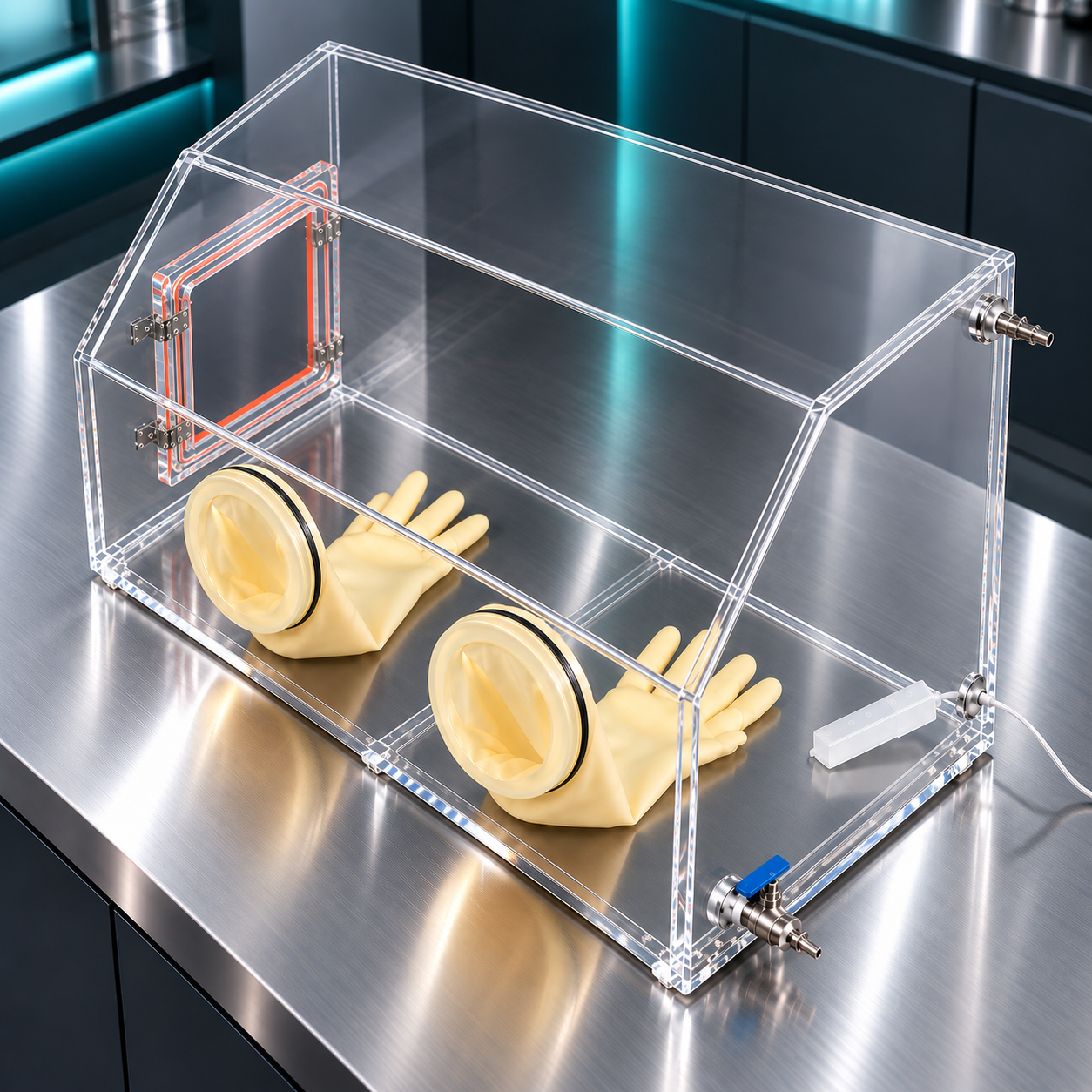

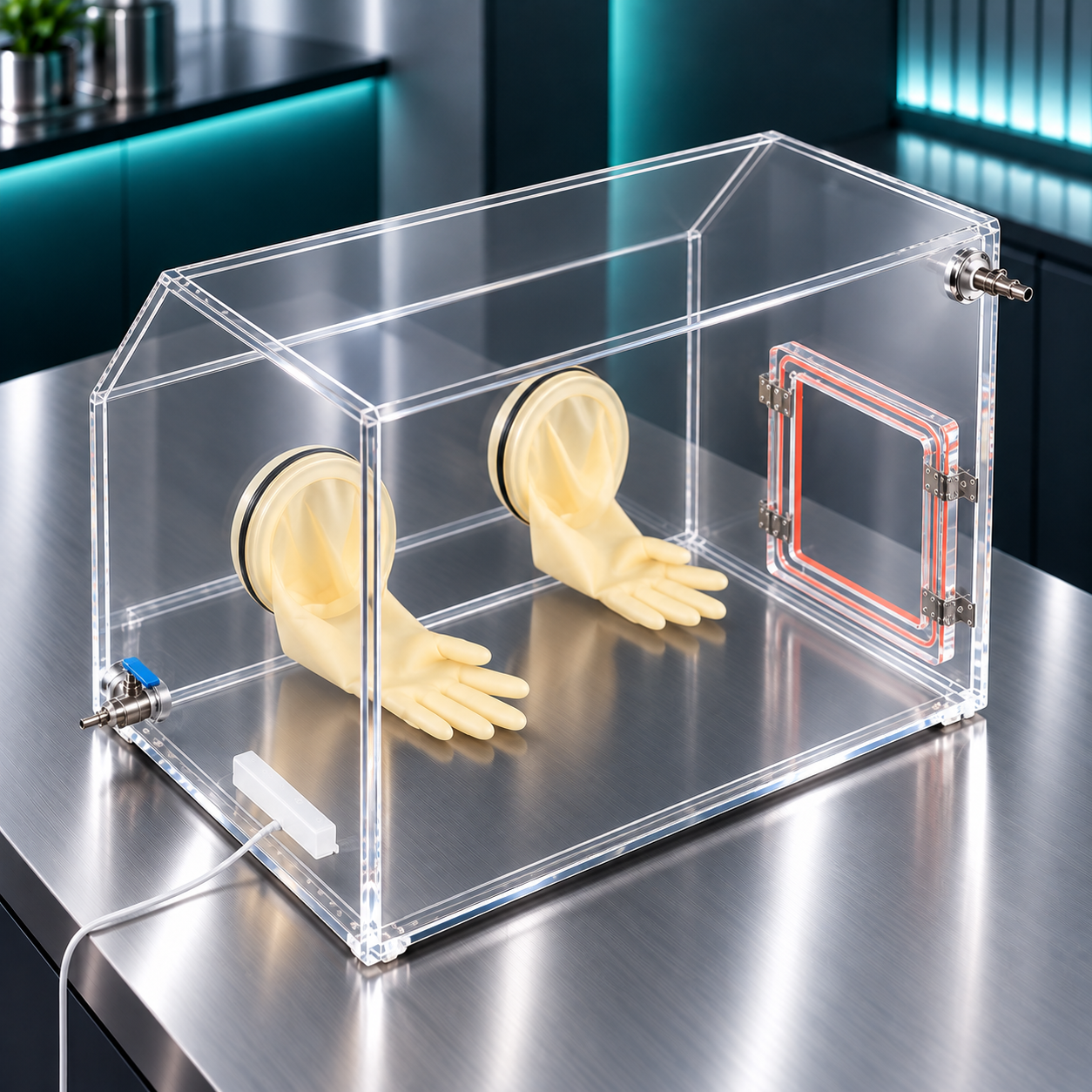

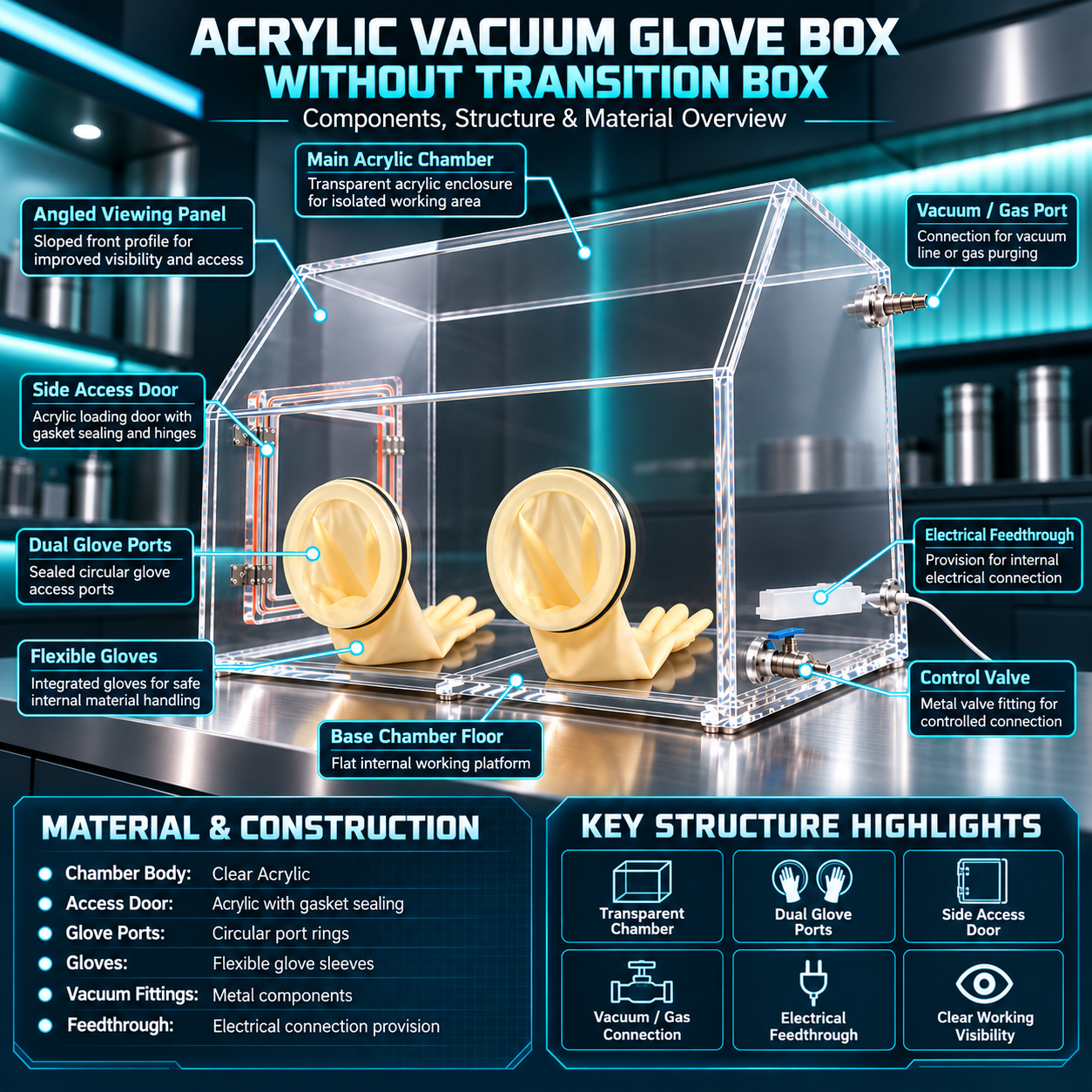

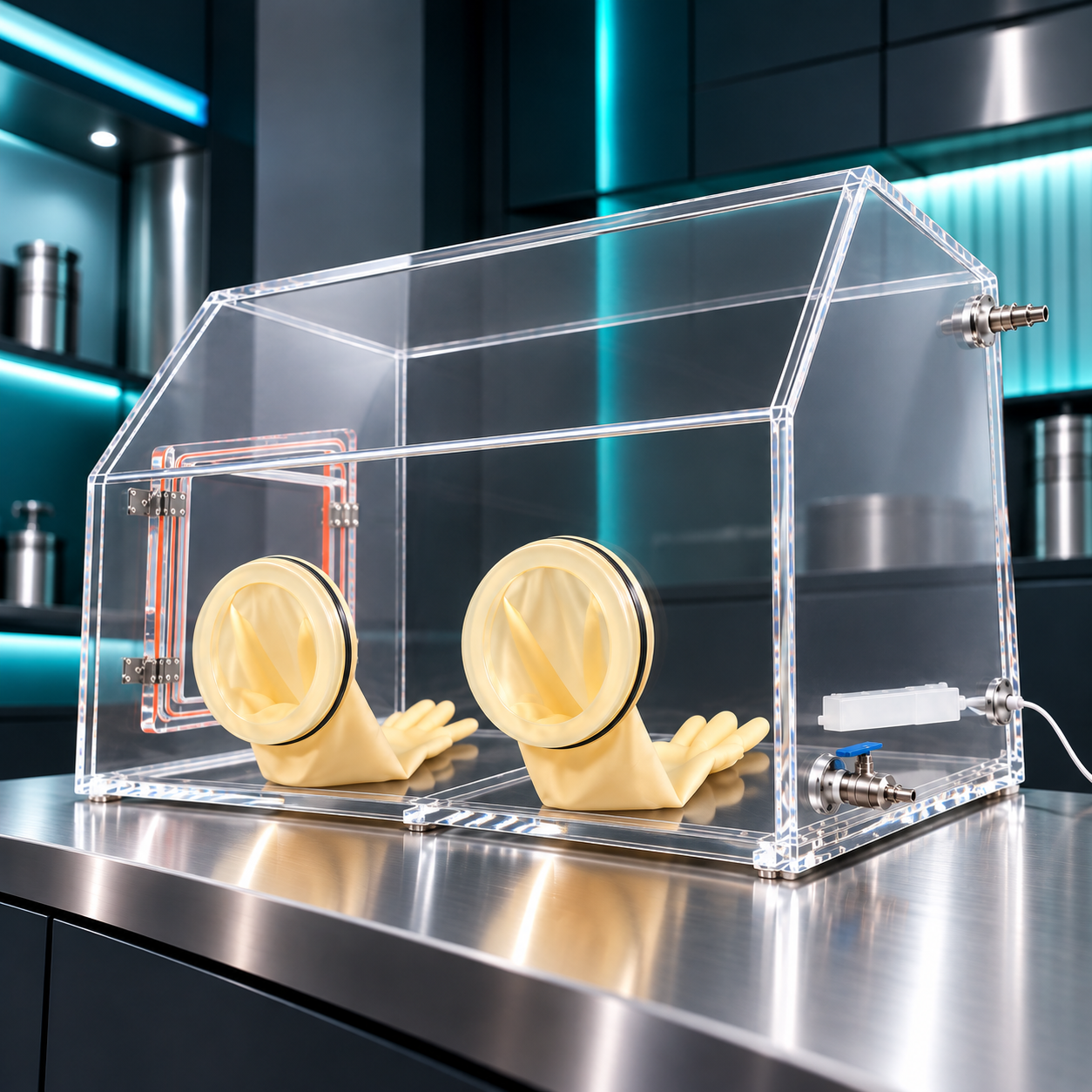

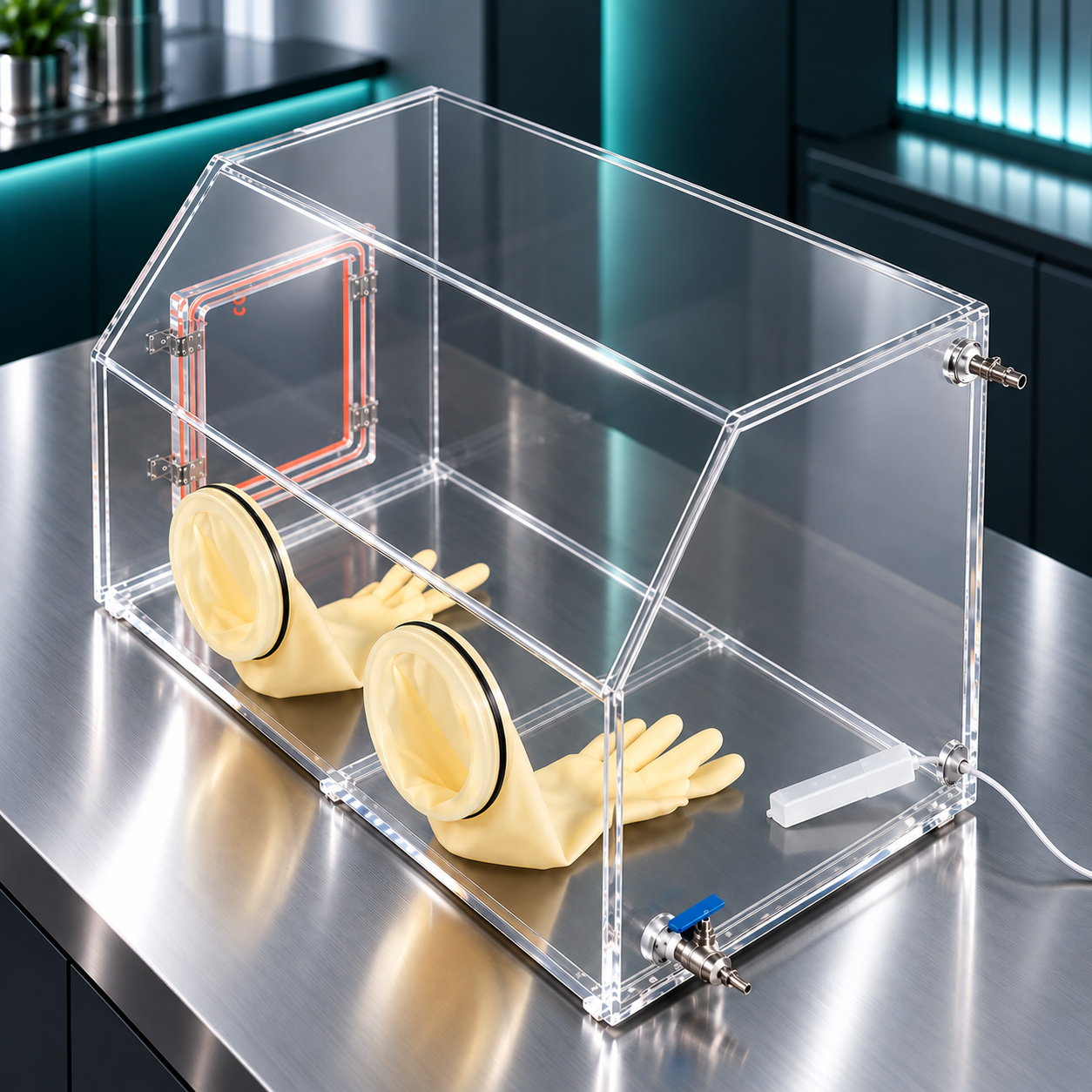

Acrylic Vacuum Box Without Transition Chamber

High-Transparency Acrylic Chamber

The chamber is manufactured from premium clear acrylic for excellent internal visibility. Operators can continuously monitor samples, instruments and working processes without opening the enclosure.

The transparent construction is particularly valuable for laboratory research, educational applications, process observation and operations requiring accurate visual monitoring.

6 mm Standard Acrylic Thickness – Customizable Construction

The standard BET-GS-A models use 6 mm acrylic chamber thickness.

However, Burhani Engineering Technology can also manufacture the chamber using a customized acrylic thickness based on the customer's project requirements. Acrylic thickness selection can depend on:

Chamber dimensions | Structural rigidity | Operating conditions | Process requirement | Equipment integration | Customer specification

Without Transition Chamber

This model is specifically designed without a transition box or antechamber, providing a straightforward enclosed working system.

Removing the transition chamber makes the overall equipment more compact and can reduce system complexity where frequent transfer under preserved atmosphere is not required. Materials, instruments and samples can instead be introduced through the side access door before the required internal environment is established.

Dual Ergonomic Glove Ports

Two integrated glove ports provide comfortable access to the internal working area. Flexible gloves enable operators to manipulate samples, tools, components and process materials while the chamber remains closed.

Depending on the selected model, the standard flange diameter is approximately 165 mm or 200 mm to provide convenient operator access for different chamber sizes.

Side Access Door

A transparent acrylic side access door provides convenient loading and unloading of materials, samples and equipment. Standard door sizes include:

• 260 × 260 mm
• 300 × 350 mm
• 400 × 400 mm

The door configuration can also be customized according to project requirements.

Vacuum / Gas Connection

The Acrylic Vacuum Box can be provided with suitable ports for connection to an external vacuum system or compatible gas supply.

Vacuum evacuation | Nitrogen purging | Argon purging | Gas displacement | Controlled atmosphere preparation

The exact operating procedure and vacuum level should be selected according to the supplied chamber configuration and intended process.

SS 304 or Brass Fitting Options

Burhani Engineering Technology provides customers with the option to select SS 304 stainless steel fittings or brass fittings for compatible valves, vacuum lines and gas connections.

The preferred material can be chosen depending on:

Process compatibility | Corrosion resistance | Operating environment | Customer preference | Project requirement

Electrical Feedthrough Provision

Depending on customer requirements, an electrical feedthrough or internal power provision can be incorporated into the chamber to support suitable electrical instruments or devices required during operation. This helps reduce unnecessary cable routing through chamber openings and creates a cleaner internal working setup.

Dustproof Sealed Working Environment

The enclosed acrylic chamber helps isolate samples and process materials from surrounding dust and environmental contamination. When integrated with appropriate gas-handling equipment, the chamber can also support gas displacement and controlled-atmosphere applications.
