Acrylic Glove Box With Transition Chamber

Controlled Environment & Vacuum Transfer System for Laboratory and Industrial Applications

Request a Quote

Product Introduction

Burhani Engineering Technology designs and manufactures high-quality Acrylic Glove Boxes With Transition Chambers for laboratories, research institutions, universities, pharmaceutical facilities, electronics industries, material science laboratories and industrial R&D applications worldwide.

This system combines a highly transparent acrylic working chamber with an integrated vacuum transition chamber, allowing samples, tools and materials to be introduced or removed while minimizing disturbance to the main controlled environment.

The transparent construction provides excellent internal visibility, while sealed glove ports allow operators to safely manipulate materials without directly opening the main chamber. The integrated transition chamber provides a convenient transfer area that can be evacuated and gas-purged according to the application, helping maintain controlled atmospheric conditions inside the primary glove box.

Depending on model and chamber dimensions, the main chamber is supplied with 6 mm or 10 mm acrylic as standard, while the acrylic chamber thickness can be customized according to customer requirements, chamber dimensions, structural requirements and intended application. The transition chamber is supplied with approximately 20 mm acrylic construction as standard, with customized configurations available where technically appropriate.

Burhani Engineering Technology also offers the flexibility to choose SS 304 stainless steel fittings or brass fittings, depending on customer preference and process compatibility.

Acrylic Glove Box With Transition Chamber

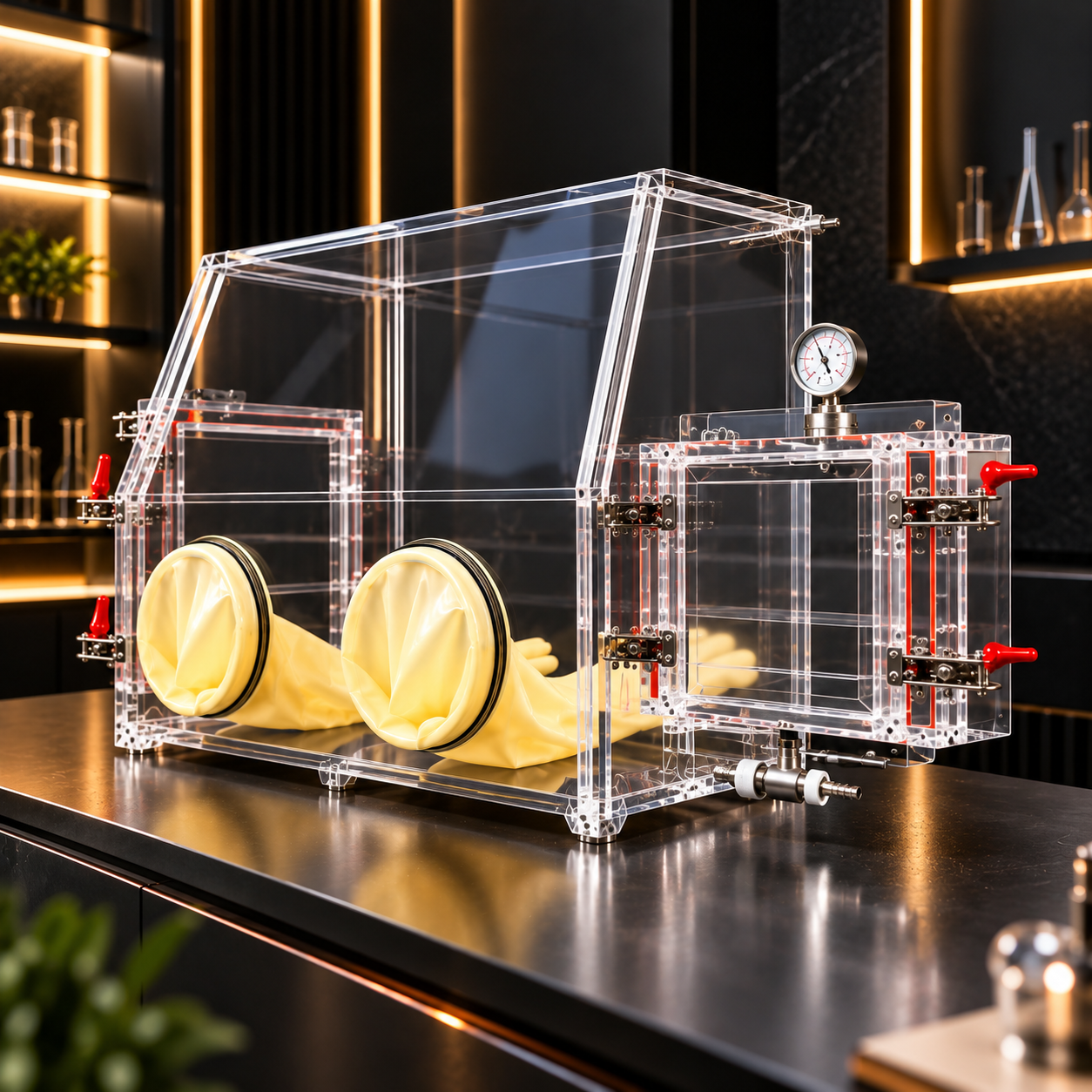

Acrylic glove box With Transition Chamber Main 1

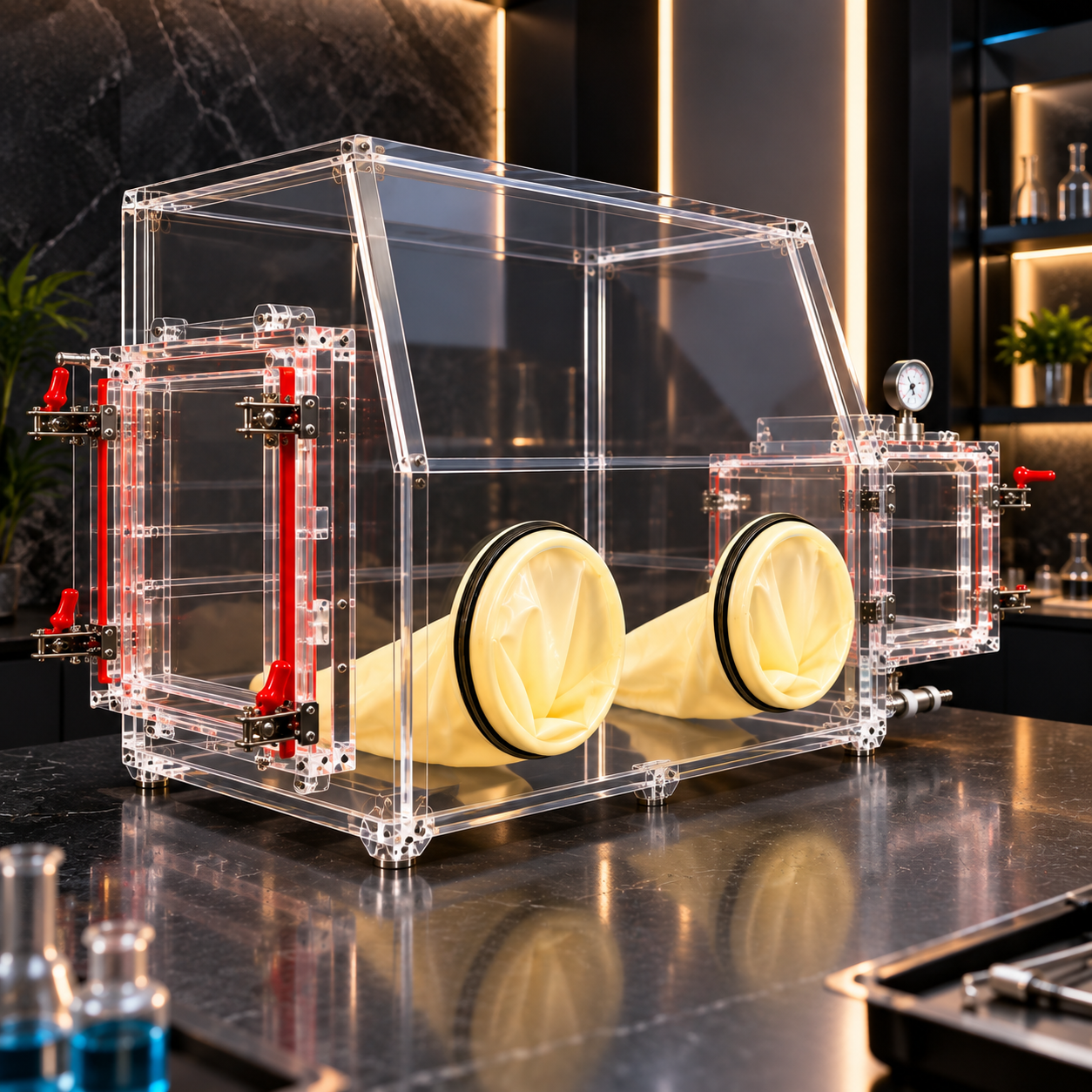

Acrylic glove box With Transition Chamber 2

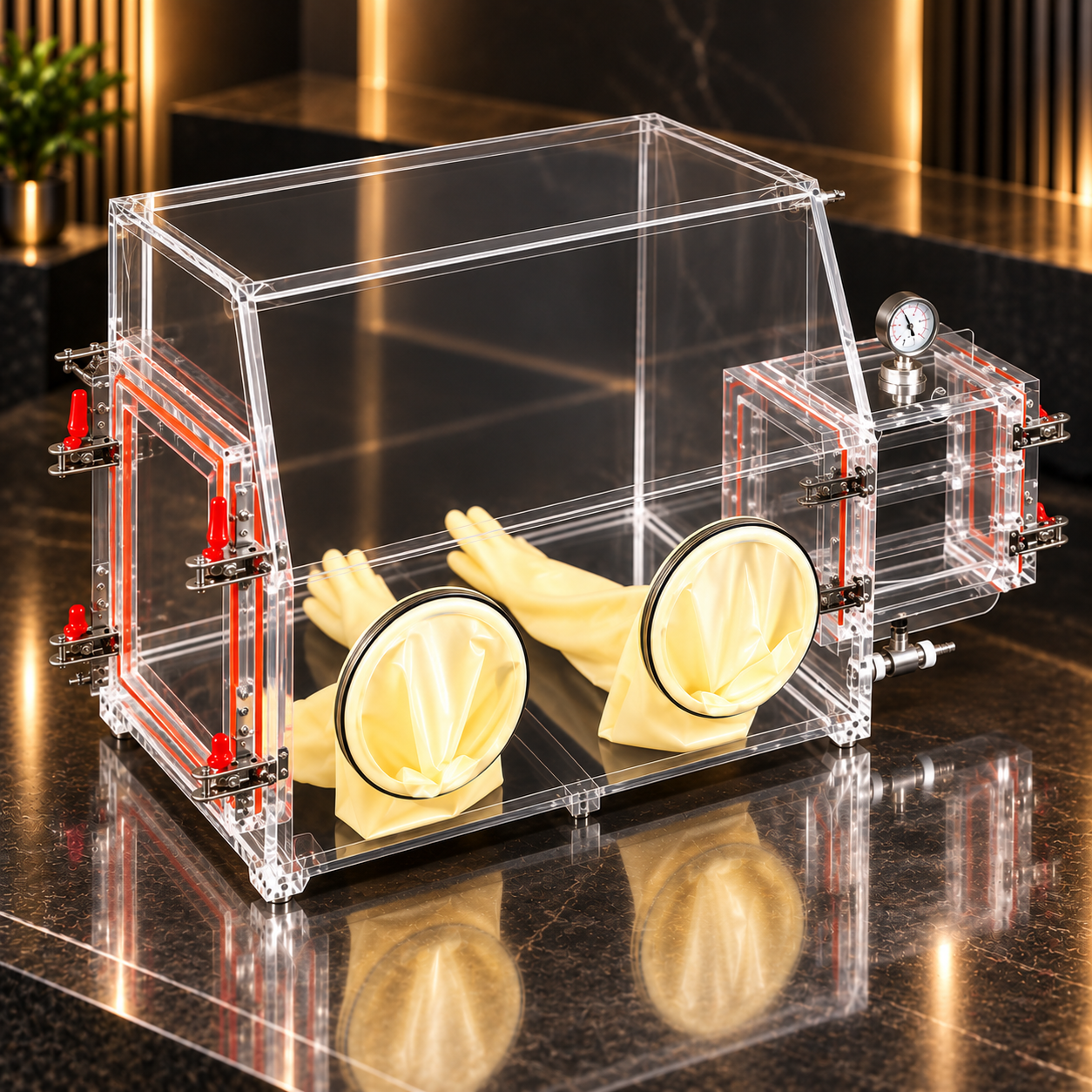

Acrylic glove box With Transition Chamber 3

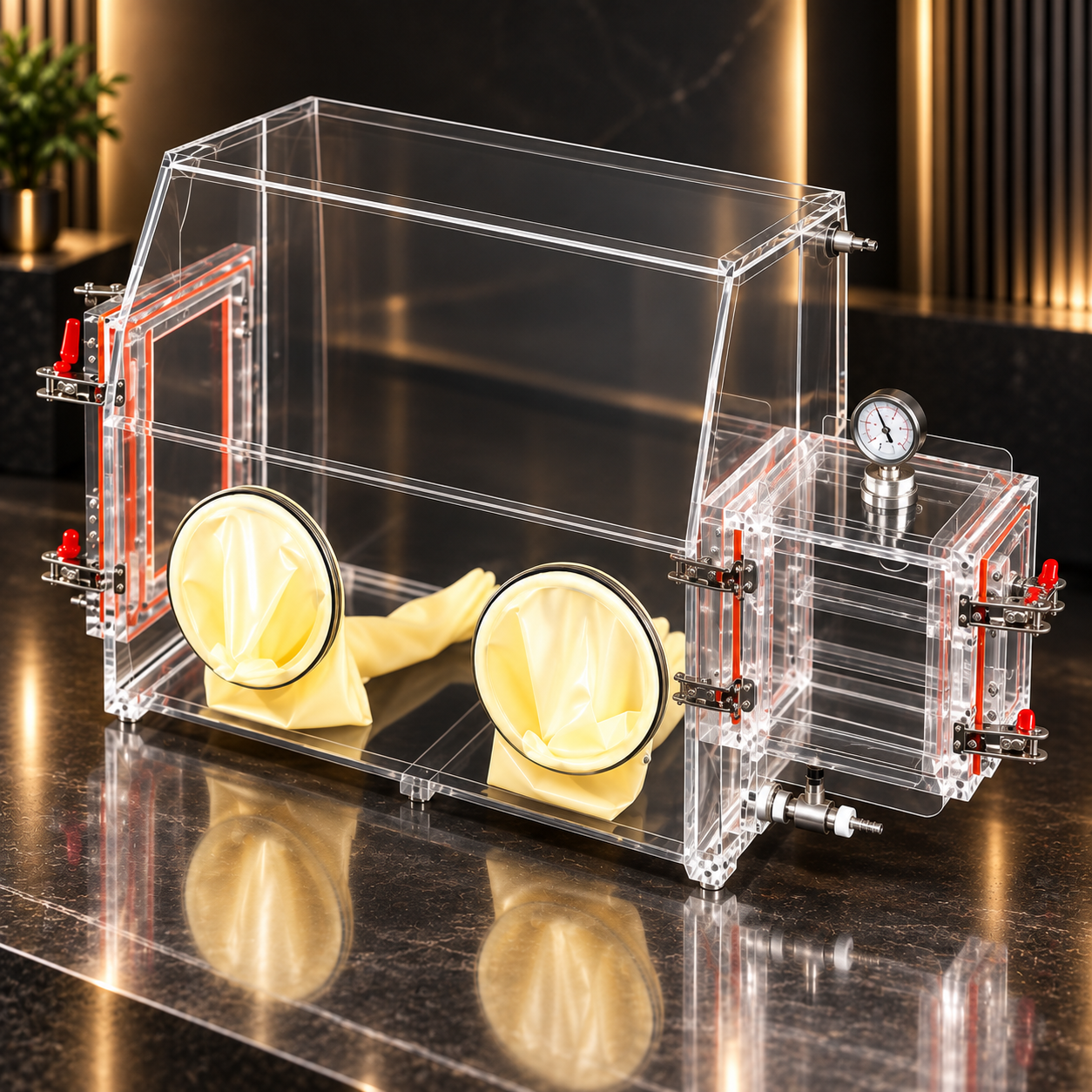

Acrylic glove box With Transition Chamber 4

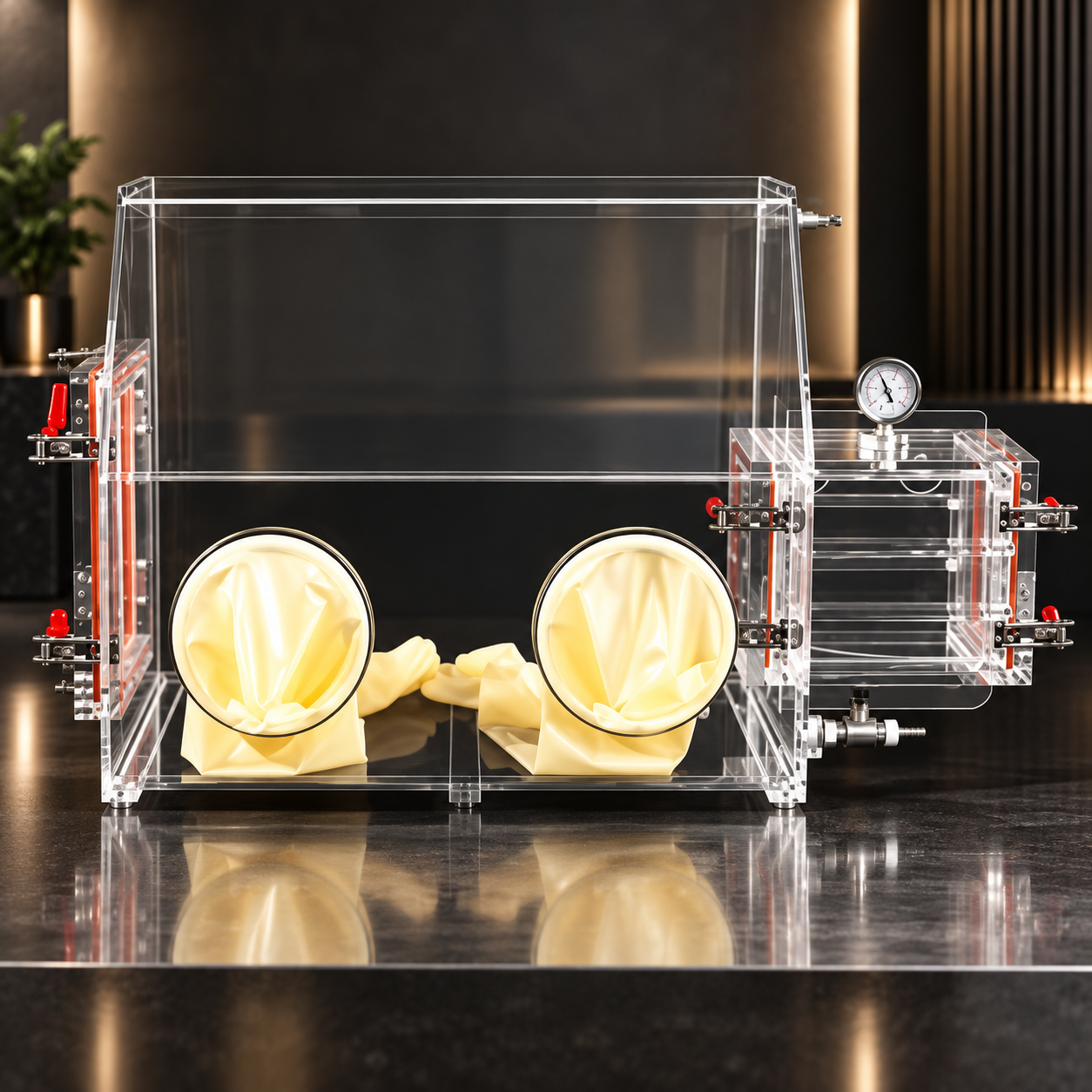

Acrylic glove box With Transition Chamber 5

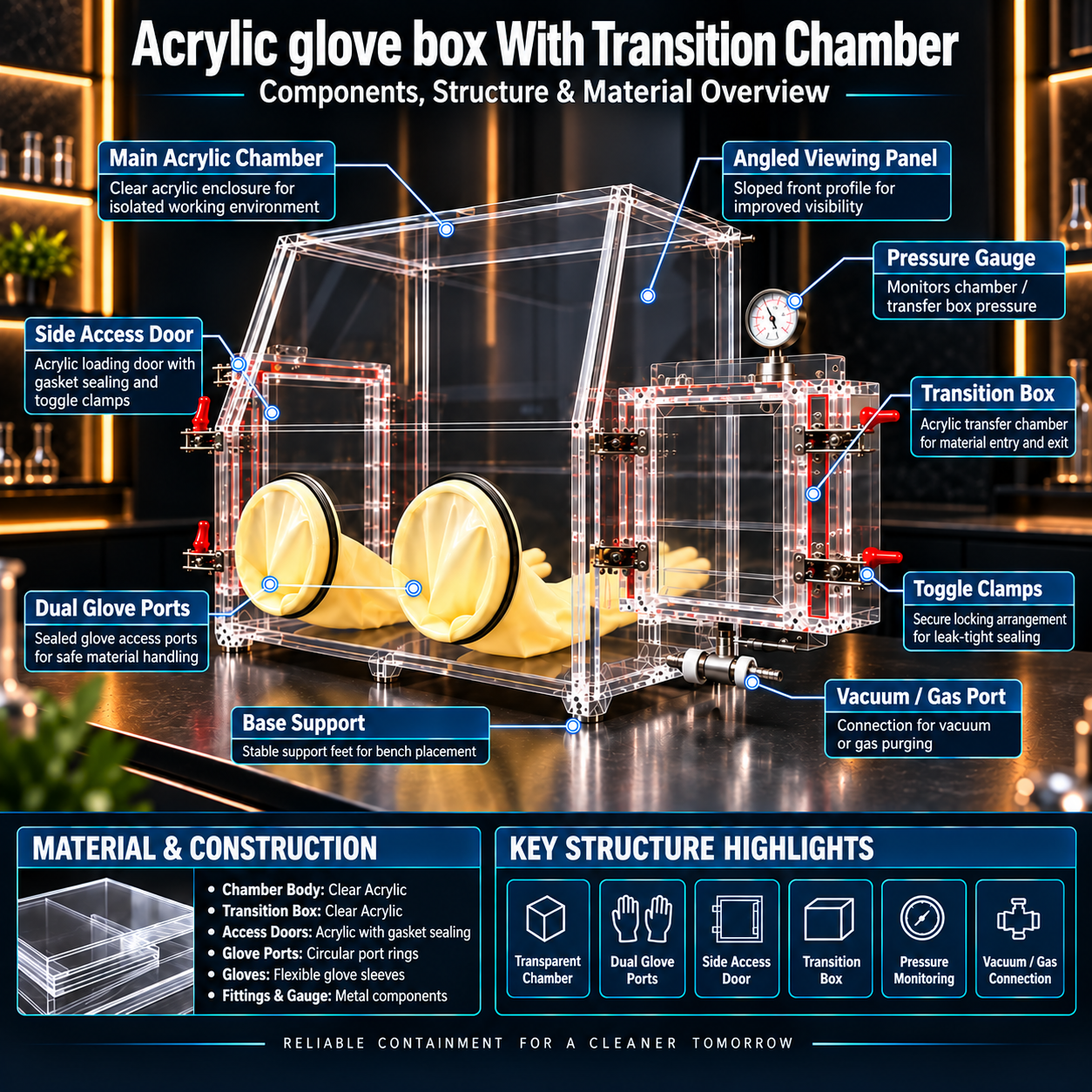

Acrylic glove box With Transition Chamber 6

Key Features

High-Transparency Acrylic Chamber for excellent visibility

Integrated 240 × 240 × 240 mm vacuum transition chamber

Vacuum capability up to approximately -0.1 MPa

Integrated pressure monitoring system

Dual ergonomic glove ports (165 mm / 200 mm)

Transparent side access door for loading

SS 304 or brass fittings available

Vacuum / gas purging connections

Customizable acrylic thickness (6 mm / 10 mm standard)

Multiple chamber sizes available

Detailed Features

High-Transparency Acrylic Chamber

The main glove box is manufactured from premium transparent acrylic, providing excellent visibility of samples, components, equipment and experimental processes from multiple viewing angles.

Standard chamber thickness is 6 mm for selected compact and medium models and 10 mm for larger configurations. However, the acrylic thickness is fully customizable according to chamber size, application and customer specifications.

This makes the system suitable for both standard laboratory requirements and larger customized installations.

Integrated Vacuum Transition Chamber

A major advantage of this model is the integrated 240 × 240 × 240 mm transition chamber, which enables materials to be transferred into or out of the glove box with reduced disturbance to the main chamber atmosphere.

The transition box is manufactured with approximately 20 mm acrylic thickness as standard and incorporates secure access doors, sealing arrangements, clamps, pressure monitoring and vacuum/gas connections.

This arrangement allows the transition chamber to be evacuated or purged before materials are transferred into the main working chamber.

Vacuum Capability Up to -0.1 MPa

The transition chamber configuration is designed for vacuum-assisted material transfer and can be configured to reach approximately -0.1 MPa, according to the specified model configuration and operating procedure.

Vacuum operation assists in removing atmospheric air from the transition chamber before gas replacement or sample transfer. Final operating limits should always be confirmed according to the supplied chamber configuration, fittings and intended application.

Pressure Monitoring System

An integrated pressure gauge provides clear monitoring of transition chamber pressure during evacuation, gas displacement and material-transfer operations.

This allows operators to observe pressure conditions before opening the transfer chamber into the main glove box.

Dual Ergonomic Glove Ports

Two front-mounted glove ports provide convenient access to the internal working area. The sealed gloves allow operators to handle samples, tools, components and laboratory materials while maintaining separation between the operator and the enclosed atmosphere.

Depending on the model, 165 mm or 200 mm flange ports are provided for comfortable handling and convenient access.

Side Access Door

A transparent side access door provides additional loading and unloading access when required. Standard door dimensions include:

300 × 350 mm for smaller models
400 × 400 mm for larger models

Door dimensions can also be customized according to customer and application requirements.

SS 304 or Brass Fittings

Customers can choose between SS 304 stainless steel fittings and brass fittings for compatible valves, vacuum connections, gas connections and associated components.

The selection can be made according to:

Process compatibility | Corrosion resistance | Operating environment | Customer preference | Project specification

Vacuum / Gas Purging Connections

The Acrylic Glove Box With Transition Chamber can be connected to suitable external equipment for:

Vacuum evacuation | Nitrogen purging | Argon purging | Gas displacement | Controlled atmosphere operation

Nitrogen or argon can be introduced depending on the customer's process requirements and compatible operating conditions.

Technical Specifications

Model	Chamber Size W × D × H (mm)	Main Chamber Thickness	Side Door Size (mm)	Flange Port	Transition Chamber (mm)	Transition Chamber Thickness
BET-GS-002-B	700 × 450 × 550	6 mm Standard / Customizable	300 × 350	165 mm	240 × 240 × 240	20 mm
BET-GS-003-B	800 × 550 × 600	6 mm Standard / Customizable	300 × 350	165 mm	240 × 240 × 240	20 mm
BET-GS-004-B	900 × 500 × 500	6 mm Standard / Customizable	300 × 350	165 mm	240 × 240 × 240	20 mm
BET-GS-005-B	900 × 600 × 700	10 mm Standard / Customizable	400 × 400	200 mm	240 × 240 × 240	20 mm
BET-GS-006-B	1000 × 750 × 700	10 mm Standard / Customizable	400 × 400	200 mm	240 × 240 × 240	20 mm
BET-GS-008-B	1200 × 800 × 700	10 mm Standard / Customizable	400 × 400	200 mm	240 × 240 × 240	20 mm

General Specifications

Main Chamber Material: High-Transparency Acrylic
Standard Main Chamber Thickness: 6 mm / 10 mm depending on model
Custom Acrylic Thickness: Available according to requirement
Transition Chamber: 240 × 240 × 240 mm
Transition Chamber Thickness: 20 mm standard
Flange Port: 165 mm / 200 mm
Fitting Options: SS 304 Stainless Steel / Brass
Glove Ports: Dual sealed glove ports
Pressure Monitoring: Integrated gauge
Vacuum Capability: Up to approximately -0.1 MPa as specified
Custom Chamber Sizes: Available
Custom Configurations: Available according to application

Applications

The Acrylic Glove Box With Transition Chamber is suitable for a wide range of controlled-environment applications. The transition chamber is particularly beneficial where materials need to be regularly introduced or removed while minimizing exposure of the main chamber to the external environment.

Laboratory Research

Pharmaceutical R&D

Material Science

Battery Research

Electronics Handling

Chemical Research

Sample Preparation

Powder Handling

Sensitive Material Transfer

Nitrogen Purging

Argon Purging

Controlled Atmosphere Experiments

University Research

Quality Control

Industrial R&D

Custom Acrylic Thickness & Chamber Configuration

Burhani Engineering Technology understands that different applications require different chamber dimensions and structural requirements. Therefore, the main acrylic chamber thickness is customizable instead of being restricted to only the standard 6 mm or 10 mm configuration.

Customers can request customization of:

Acrylic thickness
Chamber size
Glove port size
Door dimensions
Transition chamber configuration
SS or brass fittings
Vacuum connections
Gas connections
Instrumentation
Additional accessories

This enables the equipment to be engineered around the customer's process rather than forcing the application into a fixed standard design.
