Stainless Steel Vacuum Glove Box 4 Port Two Sided

Dual-Sided Access for Controlled Material Handling

Request a Quote

Product Introduction

The Stainless Steel Vacuum Glove Box 4 Port Two Sided from Burhani Engineering Technology is a professionally engineered enclosed workstation for handling sensitive materials under vacuum, inert gas or other controlled-atmosphere conditions.

Four glove ports are distributed across two working sides, typically two ports on each side. Operators can access the same chamber from opposite positions, which supports coordinated operation and improves access to larger components.

This arrangement supports multiple processing stages where materials can be prepared, assembled, transferred or inspected from different sides.

The system is built with stainless-steel construction for structural strength, corrosion resistance, and long-term reliability. Clear viewing windows allow monitoring from both sides while the chamber remains isolated from the surrounding environment.

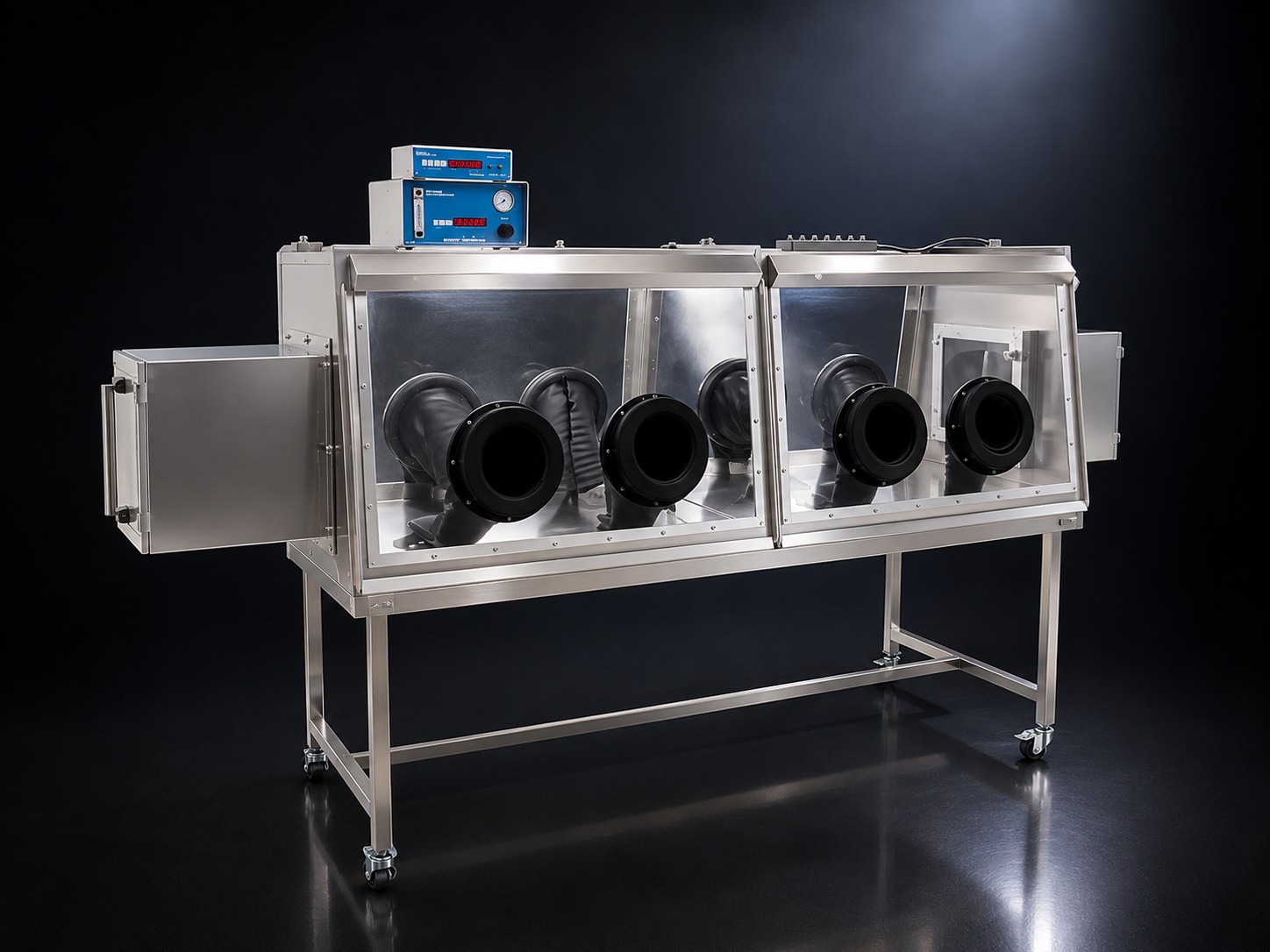

Stainless Steel Vacuum Glove Box 4 Port Two Sided – Main View

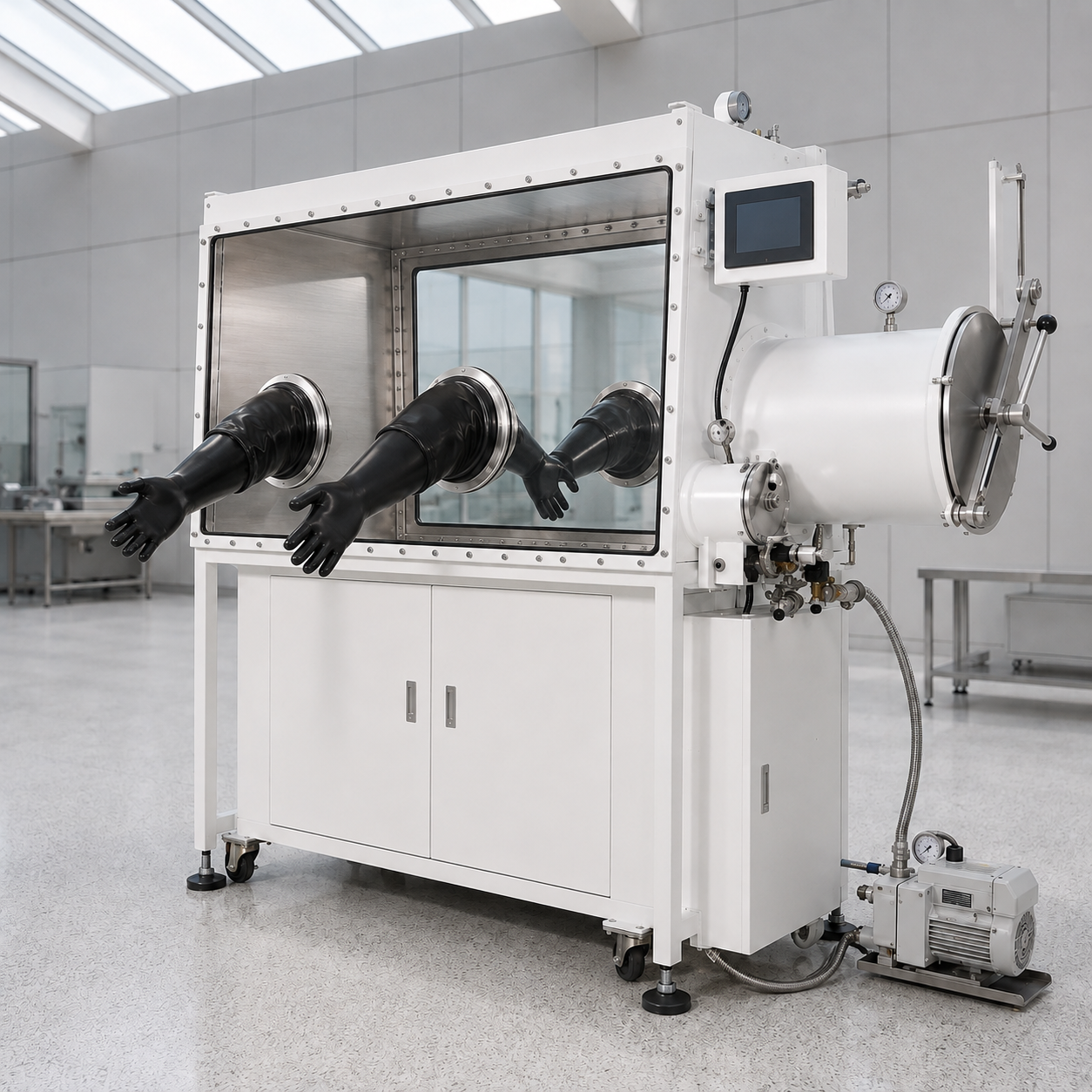

Stainless Steel Vacuum Glove Box 4 Port Two Sided – View 1

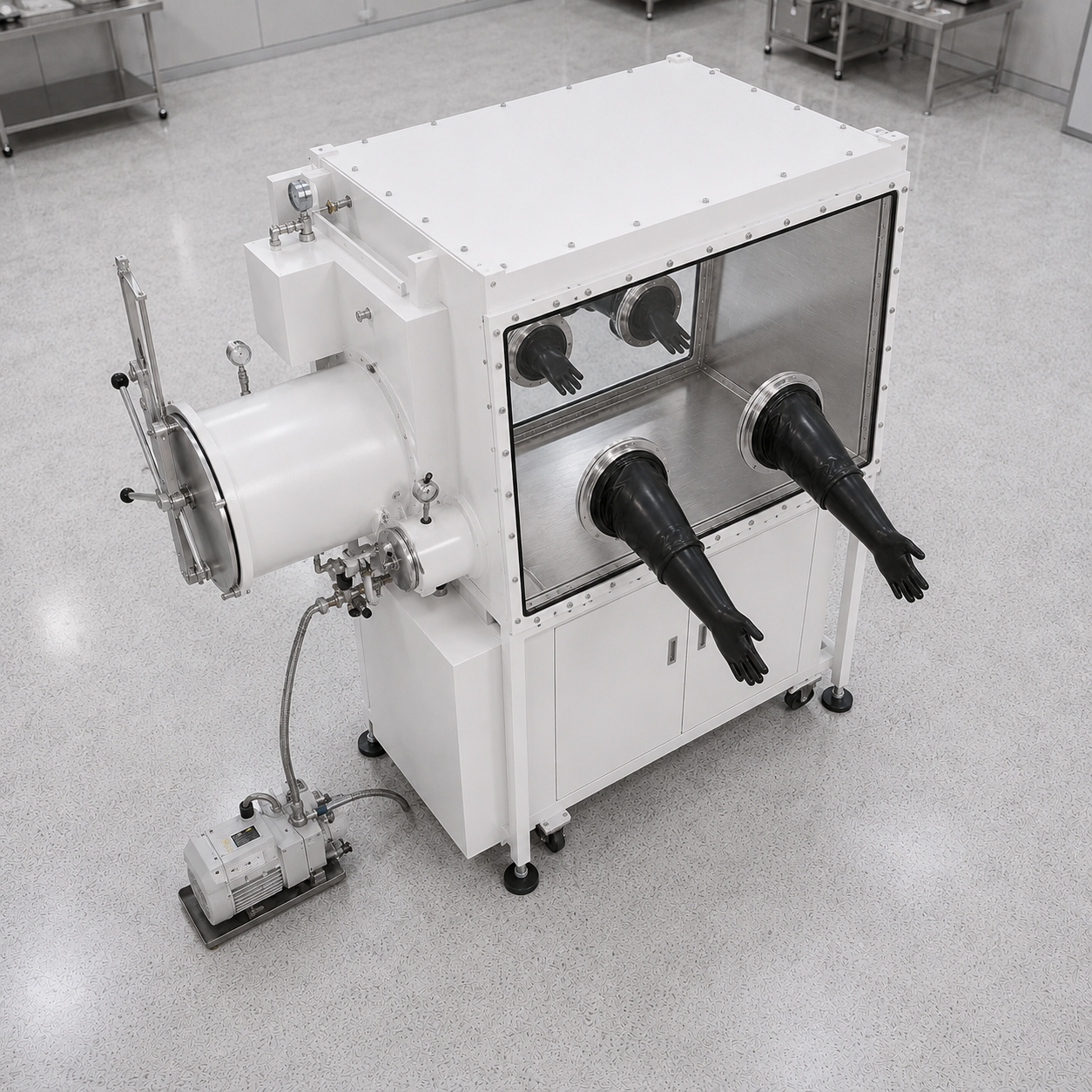

Stainless Steel Vacuum Glove Box 4 Port Two Sided – View 2

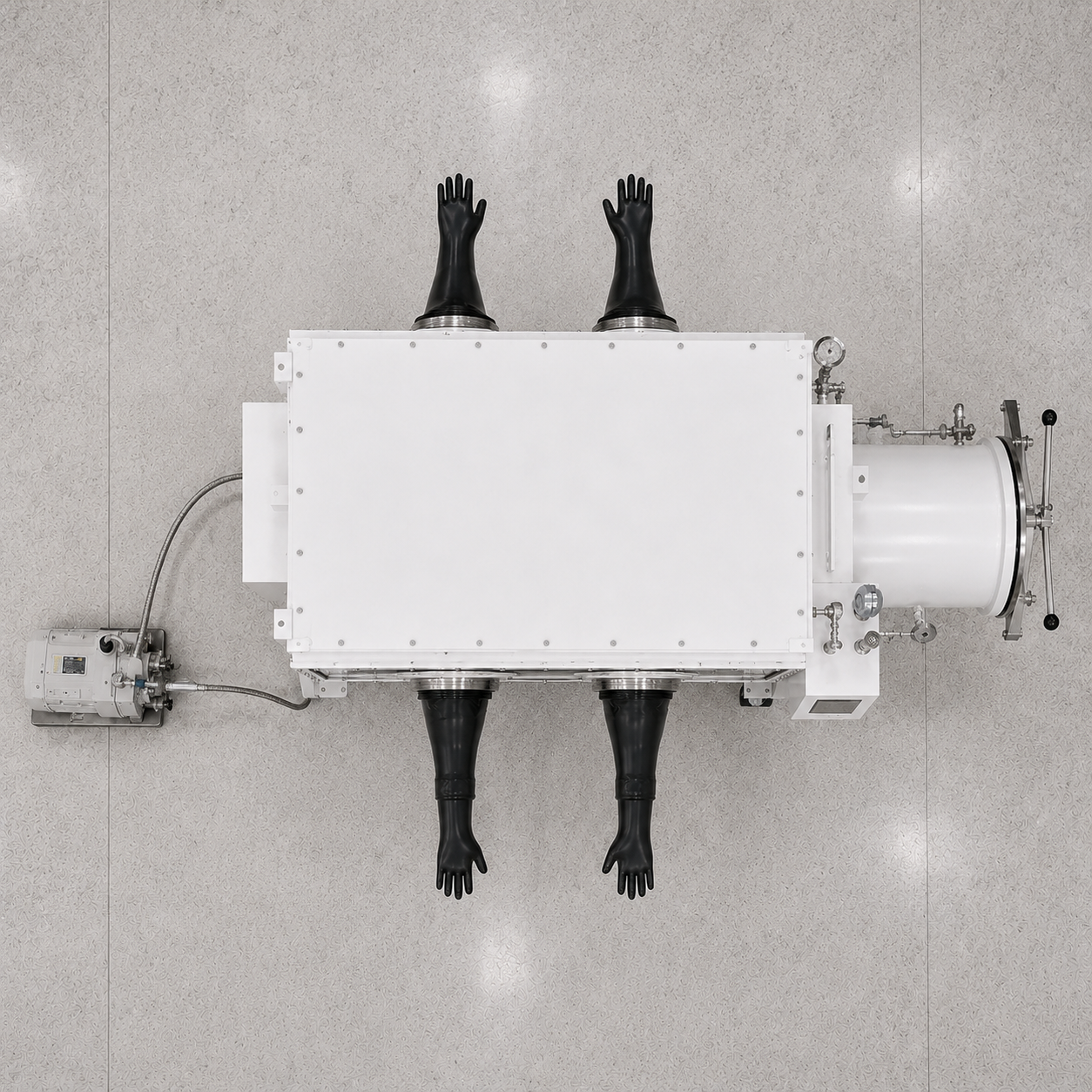

Stainless Steel Vacuum Glove Box 4 Port Two Sided – View 3

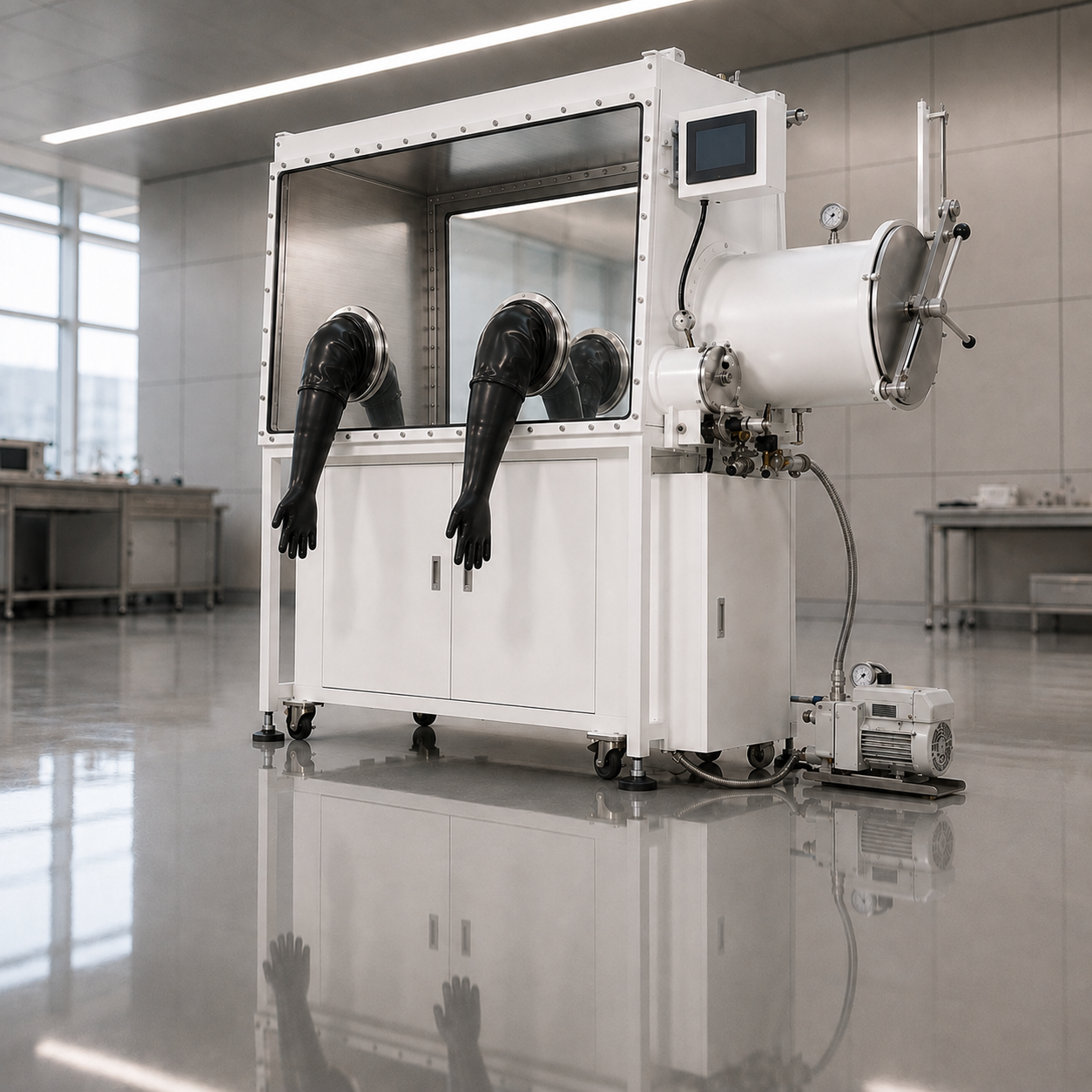

Stainless Steel Vacuum Glove Box 4 Port Two Sided – View 4

Advantages of the Two-Sided Design

A conventional glove box primarily provides access from one side. The two-sided four-port configuration allows the workspace to be reached from opposing positions.

Reduces inaccessible areas in larger/deeper chambers
Allows coordinated operation
Can support two users working from opposite sides when permitted
Allows one operator to access different areas at different process stages
Useful for long components, material transfer, coordinated assembly, and inspection activities.

Note: The two-sided layout can support coordinated operation when the chamber design and operating procedure permit it.

Dual-Sided Working Access

Maximize handling capability and process efficiency with opposite-facing glove ports providing shared access to a single controlled environment.

Key Features

Durable stainless steel chamber construction

Four glove ports arranged across two working sides

Two-sided access to the same controlled workspace

Clear viewing windows for process observation

Secure chamber sealing for controlled operation

Suitable for vacuum and inert-gas applications

Provision for a compatible vacuum pump

Pressure-monitoring and control options

Nitrogen or argon purging connections

Smooth internal surfaces for easier cleaning

Custom glove-port positions and chamber dimensions

Optional airlock or material-transfer chamber

Application-specific utility connections

Strong supporting frame for stable installation

Manufactured in Chennai by Burhani Engineering Technology

How Does the Two-Sided Vacuum Glove Box Work?

Introduction

Samples/components/process materials enter the sealed chamber directly or through an optional material-transfer airlock.

Operation

Operators work through glove ports positioned on both sides.

Isolation

The workspace remains isolated from the surrounding environment.

Vacuum / Pump

A compatible vacuum system can remove air and create the required reduced-pressure condition.

Inert Atmosphere

For inert-atmosphere applications, the chamber can be configured for nitrogen, argon or another compatible gas.

Monitoring

Valves, pressure gauges and optional digital instruments can establish and monitor internal conditions.

Note: Achievable vacuum range and atmospheric quality depend on chamber construction, sealing arrangement, vacuum pump, gas-purging method, and control accessories.

Durable Stainless Steel Construction

The stainless steel main enclosure provides dependable mechanical strength, corrosion resistance, and a professional industrial finish.

Its smooth surfaces offer convenient cleaning and maintenance, making it highly suitable for laboratories, research facilities, and production environments.

The following can be selected according to the intended application:

Stainless steel grade
Chamber thickness
Surface finish
Internal layout

Final specifications depend on chamber dimensions, required vacuum level, process materials, and operating conditions.

Typical Applications

Pharmaceutical and chemical research

Lithium-ion battery development

Battery material preparation and assembly

Electronics and semiconductor processing

Moisture-sensitive material handling

Powder processing and sample preparation

Nitrogen or argon atmosphere experiments

Material science and nanotechnology research

Vacuum testing and process development

Coordinated component assembly

Inspection of large or long components

Prototype manufacturing and testing

Research and development laboratories

Specialized industrial production processes

Why Choose Burhani Engineering Technology?

Burhani Engineering Technology manufactures stainless steel vacuum glove boxes, vacuum chambers and customized controlled-environment systems in Chennai, Tamil Nadu, India.

The systems are intended for research organizations, laboratories, educational institutions, and industrial customers for applications across India.

Systems can be developed around your required chamber size, two-sided glove arrangement, operating vacuum, process gas, transfer method, and instrumentation. We emphasize application-focused configuration and available installation space.

Customization & Optional Accessories

Accessories are selected according to chamber volume, target vacuum range, process gas, material characteristics, and intended workflow:

Rotary-vane or dry vacuum pump
Vacuum or compound pressure gauge
Digital vacuum and pressure display
Vacuum-control and isolation valves
Inert gas inlet and outlet connections
Material-transfer chamber or airlock
Clear viewing windows on both sides
Internal LED illumination
Electrical and instrumentation feedthroughs
Additional vacuum and utility ports
Gas-purification system connections
Internal shelves or working platforms
Application-compatible glove materials
Heavy-duty support stand
Process-specific control panel
Customized chamber dimensions

Frequently Asked Questions

It is an enclosed stainless steel chamber with four glove ports positioned across two working sides. It enables operators to access the same controlled workspace from opposite directions.

A common arrangement uses two glove ports on each side of the chamber. Exact position and spacing can be customized according to chamber dimensions and operating requirements.

The two-sided layout can support coordinated access by two operators when the chamber design and operating procedure permit it. Users should follow appropriate safety and process instructions during simultaneous operation.

Yes. It can be configured with suitable gas inlet, outlet, purging and pressure-control connections for nitrogen, argon or another compatible process gas.

Yes. An optional airlock or transfer chamber can allow materials to enter or leave the system while minimizing disturbance to the main chamber environment.

Yes. Chamber dimensions, glove-port spacing, viewing windows, valves, gauges, airlock and utility connections can be customized according to the application.

Burhani Engineering Technology manufactures customized two-sided stainless steel vacuum glove boxes in Chennai, India, for laboratory, research and industrial applications.

Request a Quote

Contact Burhani Engineering Technology for a customized Stainless Steel Vacuum Glove Box 4 Port Two Sided. Please provide your required dimensions, operating vacuum, process gas, application, and preferred accessories.
