Eight Port Glove Box Two Sided

Four Glove Ports on Each Side for Large Controlled Workspaces

REQUEST A QUOTE

Product Introduction

The Eight Port Glove Box Two Sided from Burhani Engineering Technology is an extended controlled-environment enclosure designed with four glove ports on each of its two working sides. With eight glove ports in total, the system provides broad access to a large internal workspace for handling, processing, assembling and inspecting sensitive materials.

Its dual-sided arrangement is suitable for complex operations involving long components, multiple work zones or coordinated handling from opposite sides of the chamber. Materials and tools can remain inside the enclosed workspace while operators carry out different process stages without frequently opening the main chamber.

The system is manufactured using quality stainless steel for structural strength, corrosion resistance and dependable performance in laboratory, research and industrial environments. Large transparent viewing sections provide clear observation of internal activities from both working sides.

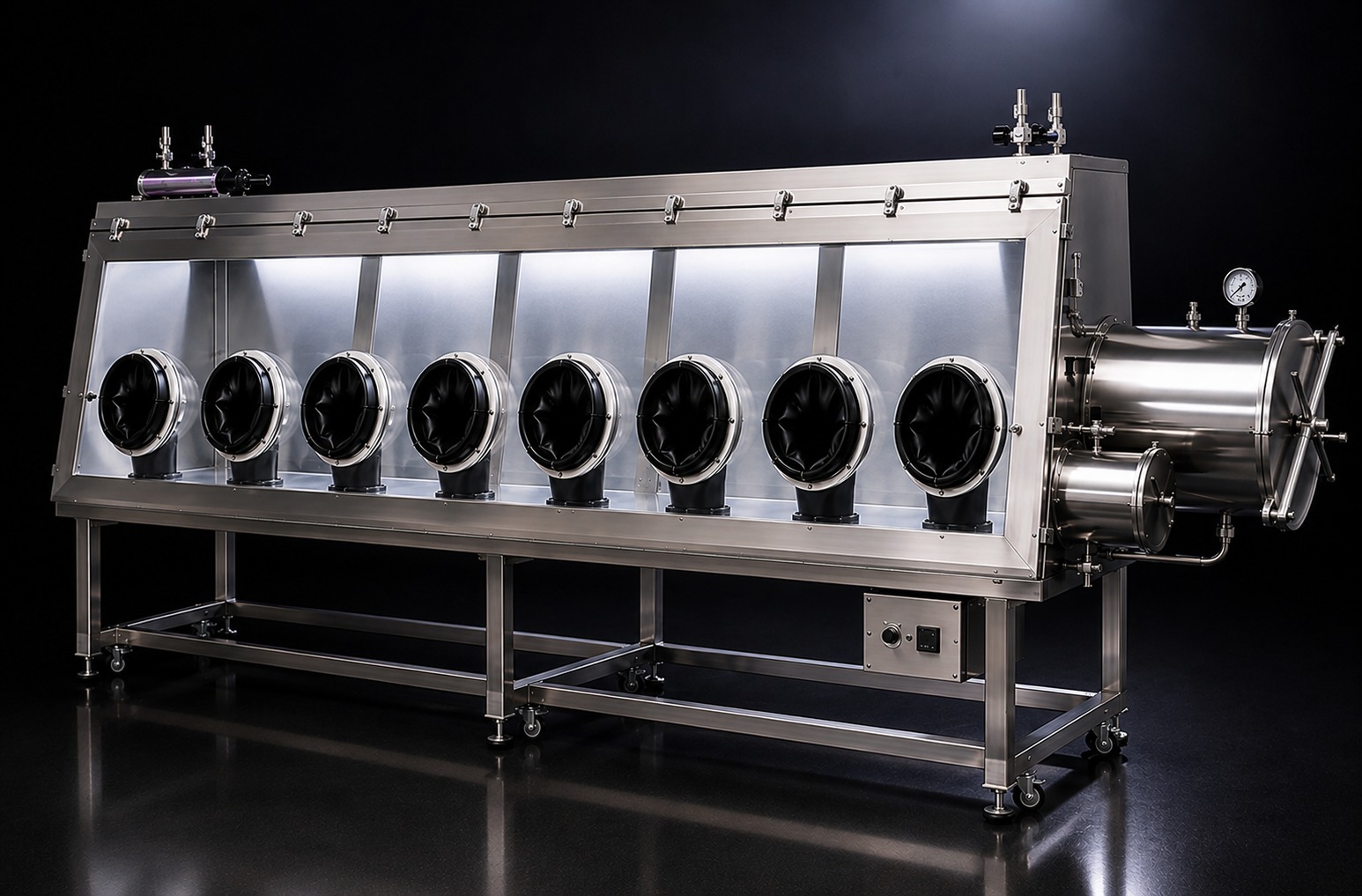

Eight Port Glove Box Two Sided – Main View

Designed for Large and Multi-Stage Processes

Four glove ports on each side allow operators to reach different areas across the chamber’s length and depth. This arrangement reduces inaccessible spaces and supports the organized positioning of samples, instruments, tools and process materials.

The internal workspace can be divided into functional zones for material preparation, processing, assembly, testing and inspection. Depending on the chamber configuration and established operating procedure, the glove box can also support coordinated access by multiple users.

The Two-Sided Eight Port Glove Box is therefore well suited for processes that require more working space and accessibility than conventional two-port or four-port systems.

Expansive Internal Workspace

Maximize operational capacity and multi-user coordination across a large, isolated environment built for complex laboratory and industrial applications.

Key Features

Eight glove ports in total

Four glove ports on each working side

Dual-sided access to an extended chamber

Strong stainless steel enclosure

Clear viewing windows on both sides

Secure sealing for controlled operation

Suitable for vacuum and inert-gas configurations

Provision for a compatible vacuum pump

Pressure-monitoring and control options

Nitrogen or argon purging connections

Smooth internal surfaces for convenient cleaning

Custom chamber dimensions and glove spacing

Optional material-transfer airlock

Heavy-duty supporting structure

Manufactured in Chennai by Burhani Engineering Technology

How Does the Eight-Port Glove Box Work?

Material Introduction & Handling

Samples, components and process materials are placed inside the enclosed working chamber directly or through an optional material-transfer airlock. Operators access the internal workspace using the four glove ports provided on each side while the chamber remains isolated from the external environment.

Atmosphere Control

For vacuum applications, a compatible pump removes air from the chamber to establish the required reduced-pressure condition. For inert-atmosphere processing, the system can be configured for purging with nitrogen, argon or another compatible process gas.

Process Monitoring

Valves, vacuum gauges and optional digital instruments allow operators to establish and monitor the internal operating conditions. Actual vacuum performance and atmospheric quality depend on the chamber construction, sealing arrangement, pump capacity, gas-purging method and selected accessories.

Strong Stainless Steel Construction

The stainless steel enclosure provides the mechanical strength required for a large glove box while offering resistance to corrosion and regular industrial use. Smooth internal surfaces support easier cleaning and maintenance where process cleanliness is important.

The stainless steel grade, wall thickness, surface finish and chamber reinforcement can be selected according to the size and application. Final specifications should be determined based on the required operating vacuum, process materials, installed accessories and working environment.

Clear Viewing and Dual-Sided Accessibility

Transparent viewing panels on both sides provide a clear view of samples, tools and internal process activities. Operators can observe material movement and coordinate work across the chamber without opening the enclosure.

Glove-port height, spacing and position can be customized according to the chamber dimensions and intended workflow. Suitable glove materials and sizes can also be selected based on flexibility, chemical compatibility and operating conditions.

Typical Applications

Pharmaceutical and chemical research

Lithium-ion battery development

Battery material preparation and assembly

Electronics and semiconductor processing

Moisture-sensitive material handling

Powder processing and sample preparation

Nitrogen or argon atmosphere experiments

Material science and nanotechnology research

Controlled assembly of long components

Vacuum testing and process development

Prototype manufacturing and inspection

Multi-stage laboratory operations

Research and development facilities

Educational and institutional laboratories

Specialized industrial production

Customization & Optional Accessories

Accessories are selected according to chamber volume, target vacuum range, process gas, material properties and workflow:

Rotary-vane or dry vacuum pump
Vacuum or compound pressure gauge
Digital pressure and vacuum display
Vacuum-control and isolation valves
Inert gas inlet and outlet connections
Material-transfer chamber or airlock
Viewing windows on both working sides
Internal LED lighting
Electrical and instrumentation feedthroughs
Additional vacuum and utility ports
Gas-purification system connections
Internal shelves or working platforms
Application-compatible glove materials
Heavy-duty support frame
Process-specific control panel
Customized chamber dimensions

Operational Flexibility

The large chamber and dual-sided access make it possible to organize tools and materials across several working areas. Separate zones can be assigned for receiving, processing, inspection and finished components, helping create a more structured workflow.

When multiple operators use the chamber, a documented operating procedure should be followed to coordinate hand movement, material transfer and tool placement inside the shared enclosure.

Why Choose Burhani Engineering Technology?

Burhani Engineering Technology manufactures vacuum glove boxes, stainless steel vacuum chambers and customized controlled-atmosphere systems in Chennai, Tamil Nadu, India. We serve laboratories, research organizations, educational institutions and industrial customers throughout India.

Each system can be engineered according to the required chamber dimensions, eight-port layout, operating vacuum, process gas, material-transfer method and instrumentation. This application-focused approach helps ensure that the glove box matches the customer’s process and installation requirements.

Frequently Asked Questions

It is an enclosed chamber with eight glove ports distributed across two working sides, normally with four glove ports on each side. It provides broad access to a large controlled workspace.

Four ports on each side improve reach across an extended chamber and make it easier to access separate processing zones, long components and large assemblies.

The system can support coordinated access by multiple operators when permitted by the chamber design and operating procedure. Appropriate safety and process instructions should always be followed.

Yes. It can be configured with suitable gas inlet, outlet, purging and pressure-control connections for nitrogen, argon or another compatible gas.

Yes. A customized airlock can allow samples and tools to enter or leave the system while minimizing disturbance to the main chamber environment.

Burhani Engineering Technology manufactures customized two-sided eight-port glove boxes in Chennai, India, for laboratory, research and industrial applications.

Need a Custom Eight Port Glove Box Two Sided?

Contact Burhani Engineering Technology for a customized Eight Port Glove Box Two Sided with Four Glove Ports on Each Side. Share your chamber dimensions, operating conditions, process gas, application and preferred accessories to receive a suitable technical configuration.
