Vacuum Chamber Sampler VC20 – Portable Air Sampling Chamber
The Vacuum Chamber Sampler VC20 is a compact portable air sampling chamber designed for contamination-free gas and air sample collection in laboratory and field applications.
- Indirect vacuum bag sampling eliminates pump cross-contamination
- Built-in miniature pump achieving greater than 18" Hg vacuum
- 12+ hours battery backup (75+ samples per charge)
- Transparent viewing chamber with integrated LED lighting
About the Vacuum Chamber Sampler VC20
Burhani Engineering Technology is a trusted Manufacturer of Vacuum Chamber Sampler VC20 – Portable Air Sampling Chamber systems designed for high-efficiency field and laboratory operations. As a leading Supplier of Vacuum Chamber Sampler VC20, we deliver contamination-free gas and air collection solutions for environmental monitoring, industrial hygiene, and emissions testing.
Our company serves as a prominent Exporter of Vacuum Chamber Sampler VC20 systems to clients globally, adhering to top industry standards. We are a reliable Importer and Dealer of Vacuum Chamber Sampler VC20 setups, providing comprehensive technical support and custom options.
The Vacuum Chamber Sampler VC20 works on the principle of indirect vacuum bag sampling (often called the "lung principle" or "vacuum bag sampler"). By placing a Tedlar or other gas sampling bag inside the airtight chamber and evacuating the chamber with the built-in miniature vacuum pump, a negative pressure differential is created. The bag expands, drawing the target sample directly from the source through the PTFE bulkhead fitting and tubing, completely bypassing the pump, valves, or internal components. This ensures zero cross-contamination and maintains sample purity.
Key Features
Designed for field reliability, precision, and ease of use.
How It Works
A streamlined, contamination-free sampling cycle in 3 steps.
Insert & Connect the Bag
Place an empty, clean Tedlar or other sampling bag inside the VC20 vacuum chamber. Connect the bag's inlet valve to the chamber's pass-through PTFE bulkhead fitting.
Seal & Evacuate the Chamber
Close and lock the transparent chamber lid. Switch on the built-in miniature vacuum pump. The pump rapidly evacuates the air surrounding the bag inside the chamber, creating a negative pressure differential.
Collect Sample & Retrieve Bag
The vacuum causes the sample bag to expand, drawing the target air sample directly from the source through the PTFE inlet tube. Once filled, shut the bag valve, release chamber vacuum, and open the lid to retrieve the sample.

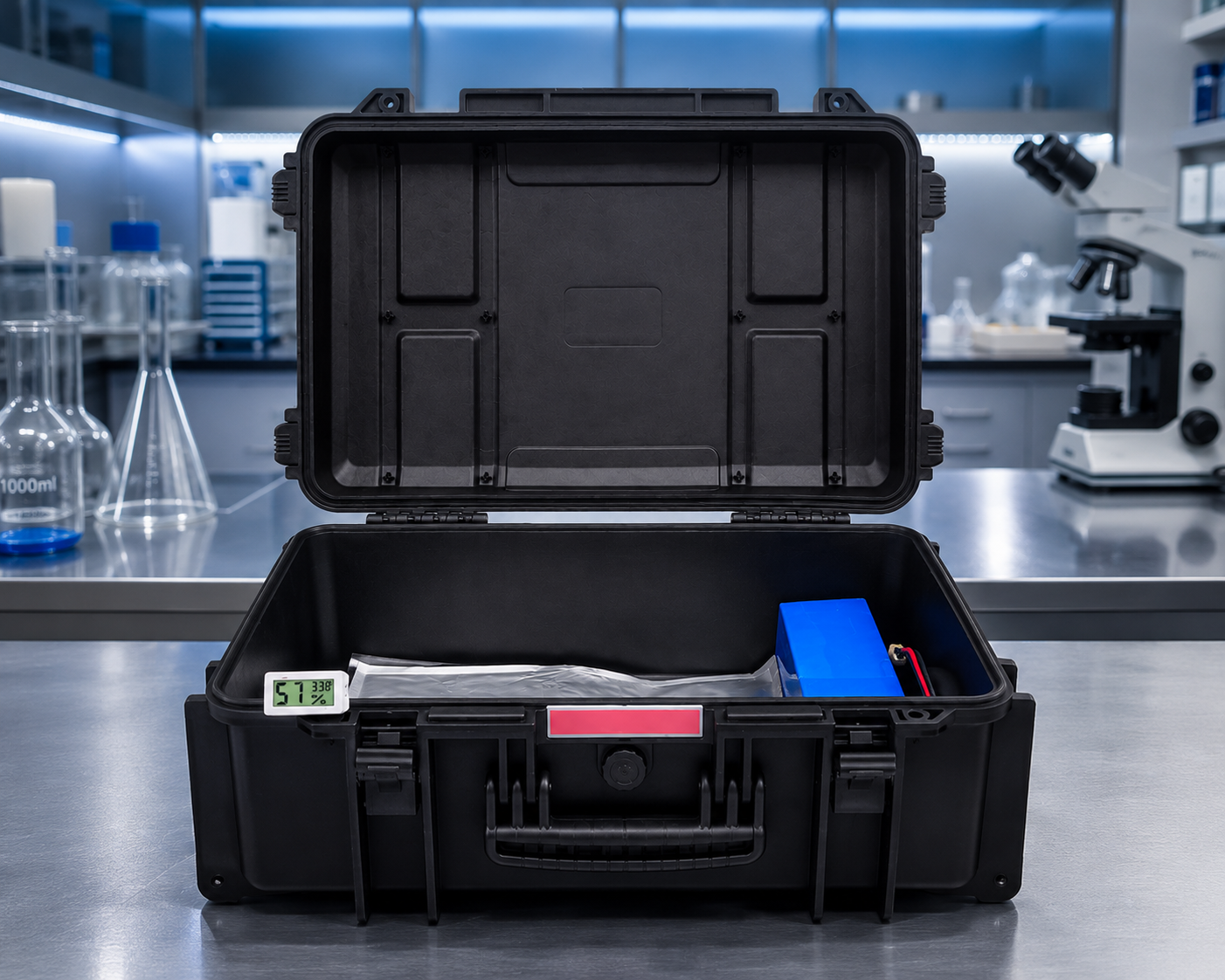

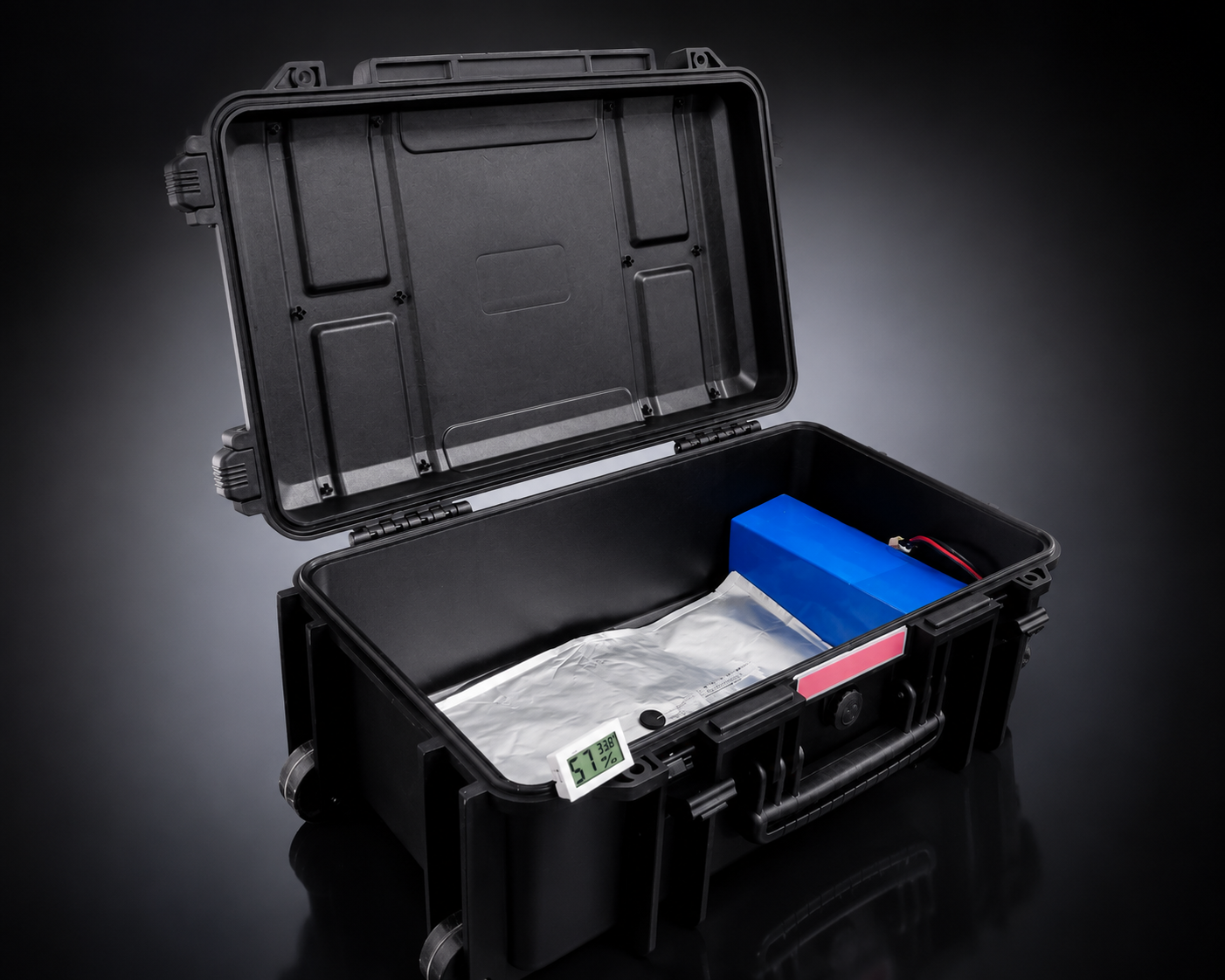

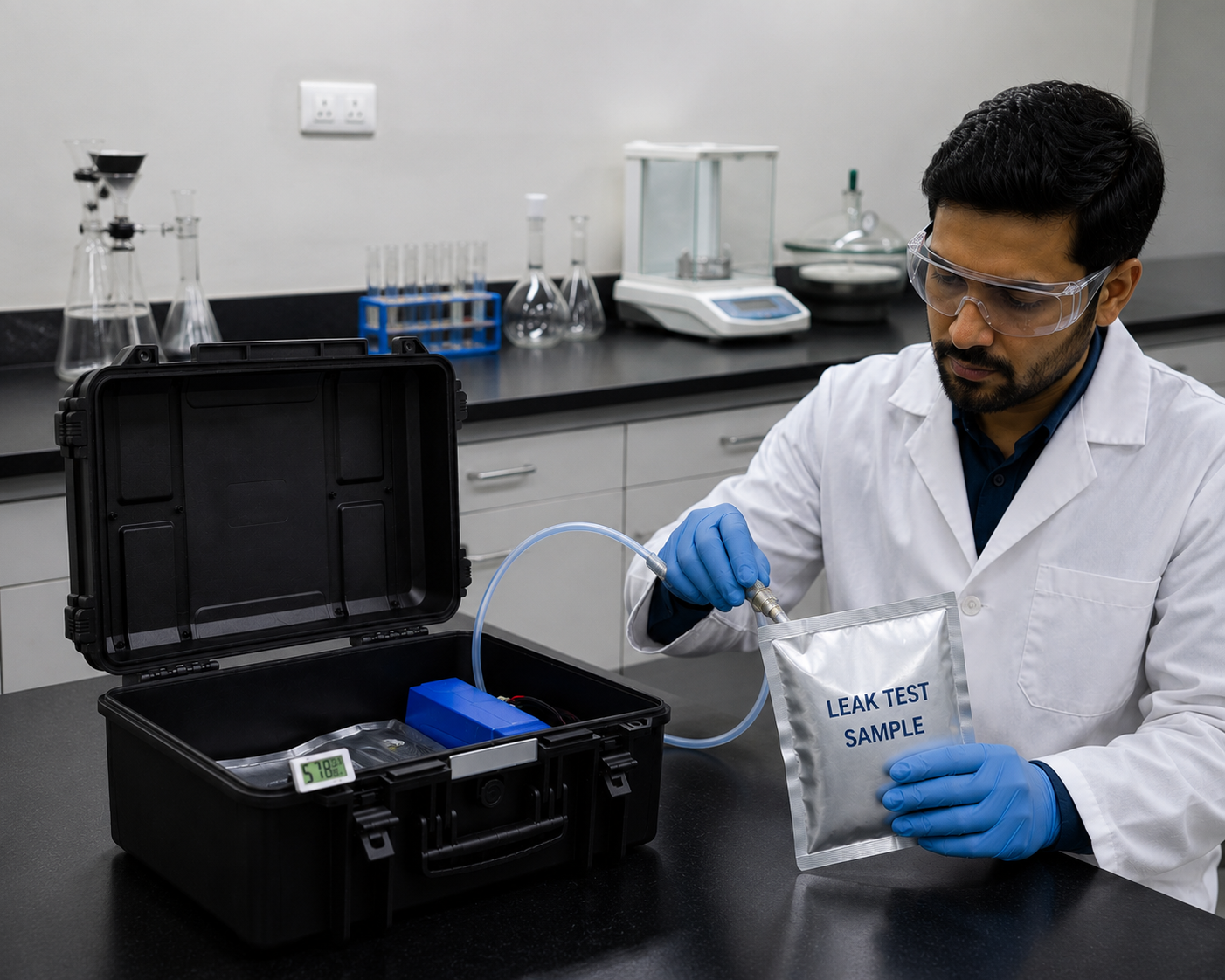

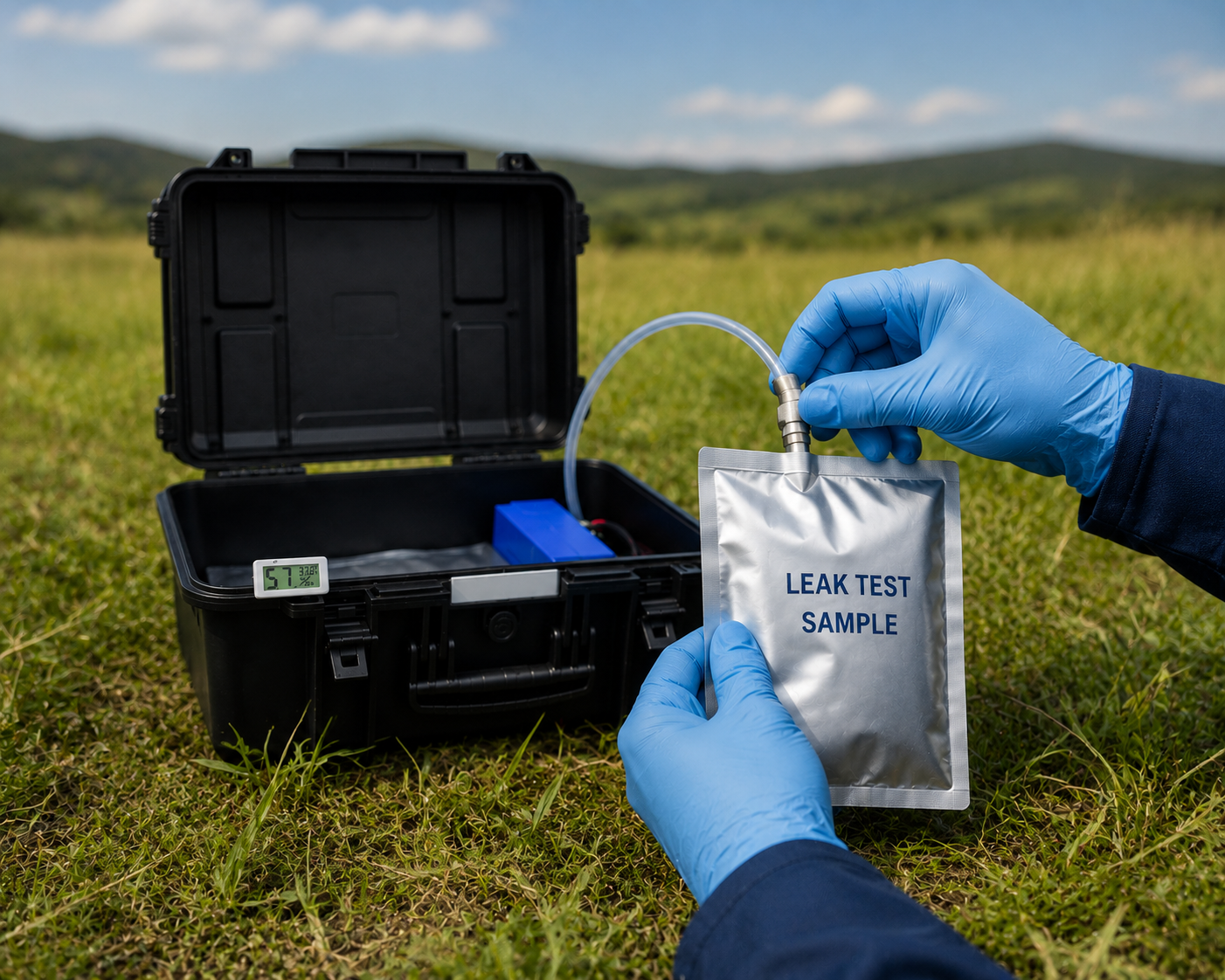

Product Gallery
Click on the thumbnails below to view detail angles.
Technical Specifications
Comprehensive specifications for model VC20
| Parameter | Specification |
|---|---|
| Product Name | Vacuum Chamber Sampler VC20 |
| Type | Portable Air Sampling Chamber Machine |
| Sampling Method | Indirect Vacuum Bag Sampling |
| Vacuum Pump | Built-in Miniature Pump |
| Maximum Vacuum | Greater than 18" Hg |
| Flow Rate | Up to 12 LPM |
| Battery Backup | 12+ Hours |
| Sample Capacity | 75+ Samples |
| Charging | 110/220V AC & 12V DC |
| Tubing | PTFE |
| Lighting | LED |
| Warranty | 12 Months |
| Country | Made in India |
Target Applications
Where the Vacuum Chamber Sampler VC20 is commonly applied.
Collecting surrounding air patterns to verify quality compliance and identify airborne particulates.
Monitoring factories, assembly plants, and work yards for employee safety and organic chemical limits.
Capturing gas mixtures without degradation for standard sensory olfactometry lab tests.
Sampling volatile gas emissions around open tanks, clarifiers, and pipeline exhausts.
Evaluating methane buildup and ground gas emissions around containment fields.
Monitoring gas emissions from decomposition process to prevent environmental nuisance.
Industries Served
A vital tool across primary manufacturing, compliance, and scientific sectors.
Spot-checking pipelines, refineries, and vapor storage lines for trace leaks and organic emissions.
Ensuring pure, uncompromised gas research and sample analyses in academic and private labs.
Assisting environmental consultants and regulatory bodies in verifying strict clean air standards.
